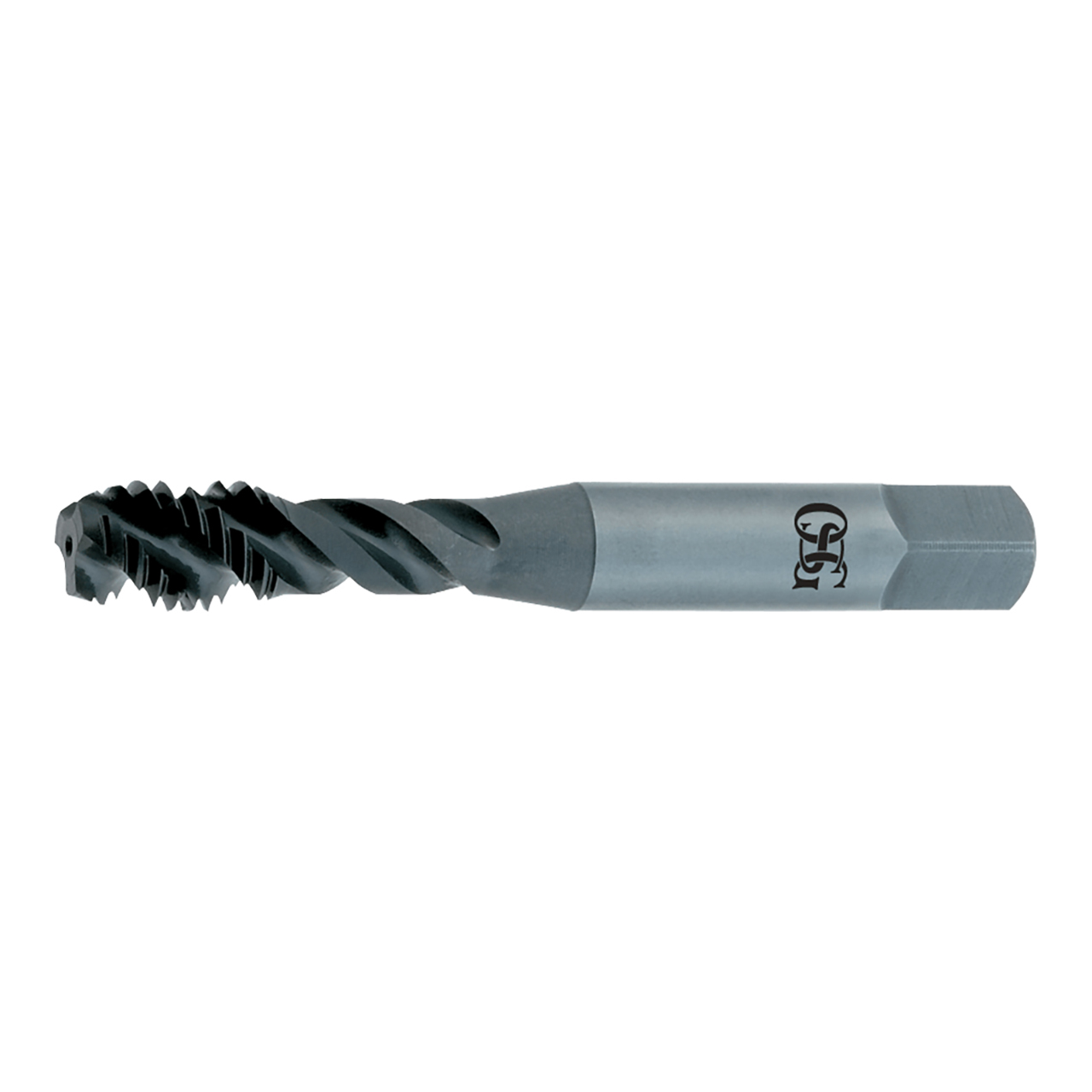

HY-PRO is the original "Do it All" premium spiral flute tap for a wide range of materials.
Features & Benefits:
- HSSE material: Increased wear resistance
- Spiral Flute: For blind hole applications
- Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
- TiCN coating: Improves wear resistance for extended tap life
Product Specifications
| Manufacturer Part Number | 2992208 |
| Chamfer Length (Decimal Inch) | 0.148" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | SFT |
| Major Diameter (mm) | 12.00mm |
| Neck Length (mm) | 49.90mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 85.70mm |
| Pitch (mm) | 1.50mm |
| Shank Diameter (mm) | 9.32mm |
| Square Length (mm) | 11.11mm |
| Square Width (mm) | 6.99mm |
| Material | HSSE |
| Coating | TiCN |
| Tap Drill Size Maximum (mm) | 10.68mm |
| Tap Drill Size Minimum (mm) | 10.38mm |
| Thread Length (mm) | 13.99mm |
| Thread Limit | D6 |
| Thread Size | M12 |
| Thread Type | MF |
| Series | 299 |
| Product Type | Spiral Flute Tap |
