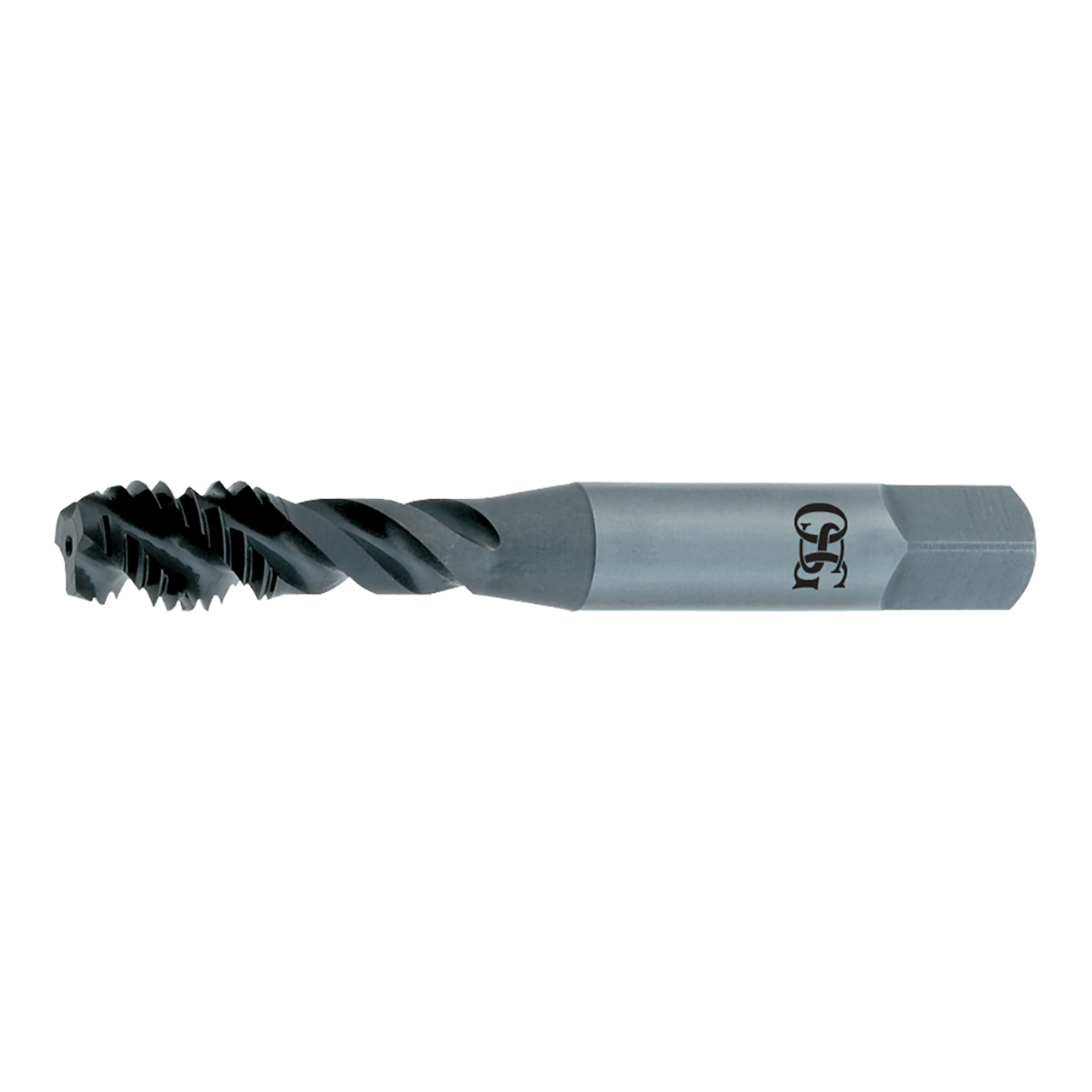

OSG 2992308 | HY-PRO TAP M M12.00x1.75mm Thread Size x 9.32mm Shank x 13.99mm Length x 85.70mm OAL Modified Bottom (2.5P) Chamfer D6 3 Flute TiCN Coated HSSE 299 Spiral Flute Tap

OSG 2992308 | HY-PRO TAP M M12.00x1.75mm Thread Size x 9.32mm Shank x 13.99mm Length x 85.70mm OAL Modified Bottom (2.5P) Chamfer D6 3 Flute TiCN Coated HSSE 299 Spiral Flute Tap

SKU: 15030535 Weight: 0.10 LBS Minimum Purchase: 1 unit
UPC:
$93.59 $57.09
(You save $36.50)
Shipping: Calculated at Checkout

About This Item

HY-PRO is the original "Do it All" premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2992308
Chamfer Length (Decimal Inch)0.172"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameSFT
Major Diameter (mm)12.00mm
Neck Length (mm)49.90mm
Number of Flutes3
Overall Length (mm)85.70mm
Pitch (mm)1.75mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
MaterialHSSE
CoatingTiCN
Tap Drill Size Maximum (mm)10.44mm
Tap Drill Size Minimum (mm)10.11mm
Thread Length (mm)13.99mm
Thread LimitD6
Thread SizeM12
Thread TypeM
Series299
Product TypeSpiral Flute Tap
