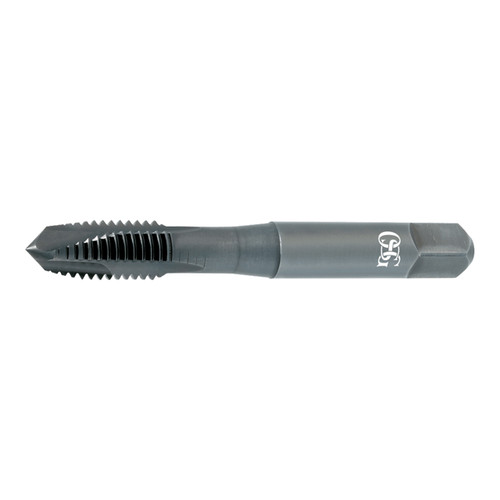

EXOTAP VC-10 is the premium solution for tapping helicoil (STI) threads in difficult to machine materials.
Features & Benefits:
| Manufacturer Part Number | 31402701 |
| Chamfer Length (Decimal Inch) | 0.278" |
| Chamfer Type | Plug (5P) |
| Cutting Direction | Right Hand |
| List Name | VC-10 POT STI |
| Major Diameter (Decimal Inch) | 0.563" |
| Neck Length (Decimal Inch) | 1.677" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 3.811" |
| Shank Diameter (Decimal Inch) | 0.480" |
| Square Length (Decimal Inch) | 0.563" |
| Square Width (Decimal Inch) | 0.360" |
| Material | VC-10 |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (Decimal Inch) | 0.645" |
| Tap Drill Size Minimum (Decimal Inch) | 0.637" |
| Thread Length (Decimal Inch) | 1.165" |
| Thread Limit | h4 |
| Thread Size (Inch) | 9/16" |
| Thread Type | UNF STI |
| Thread Per Inch (TPI) | 18 TPI |
| Series | 314 |
| Product Type | Spiral Point STI Tap |
