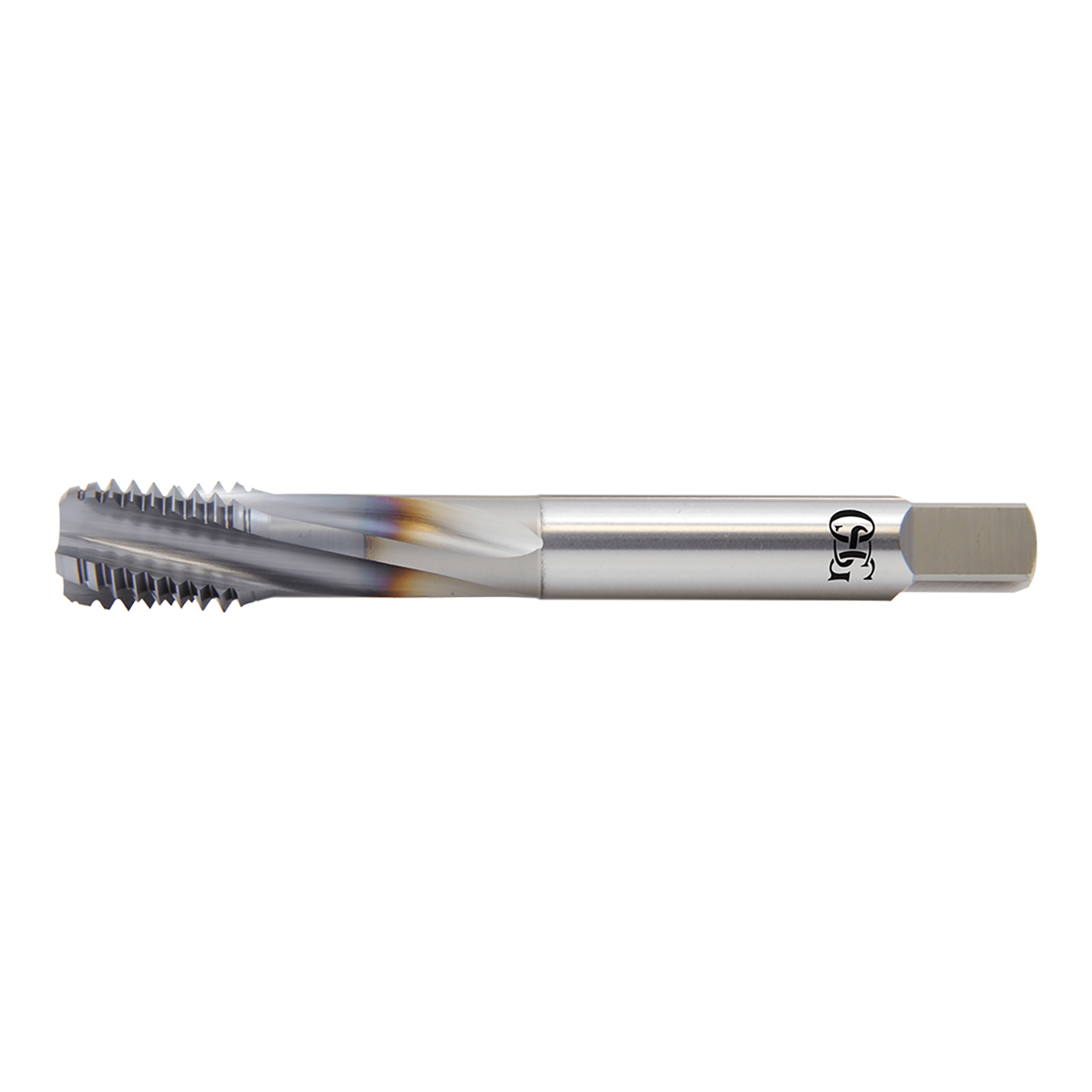

OSG 31704808 | EXOTAP UNF 1" - 12 Thread Size x 0.800" Shank x 1.000" Length x 5.512" OAL Modified Bottom (2.5P) Chamfer h6 4 Flute V Coated VC-10 317 Spiral Flute Tap

OSG 31704808 | EXOTAP UNF 1" - 12 Thread Size x 0.800" Shank x 1.000" Length x 5.512" OAL Modified Bottom (2.5P) Chamfer h6 4 Flute V Coated VC-10 317 Spiral Flute Tap

SKU: 18005160 Weight: 0.63 LBS Minimum Purchase: 1 unit
UPC:
$485.22 $451.25
(You save $33.97)
Shipping: Free Shipping

About This Item

EXOTAP VC-10 is the premium solution for tapping in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number31704808
Chamfer Length (Decimal Inch)0.208"
Major Diameter (Decimal Inch)1.000"
Neck Length (Decimal Inch)3.012"
Number of Flutes4
Overall Length (Decimal Inch)5.512"
Shank Diameter (Decimal Inch)0.800"
Square Length (Decimal Inch)0.813"
Square Width (Decimal Inch)0.600"
Maximum Tap Drill Size (Decimal Inch)0.928"
Minimum Tap Drill Size (Decimal Inch)0.910"
Thread Length (Decimal Inch)1.000"
Thread Size (Inch)1"
CoatingV
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)15 Degree
Series317 Series
Product TypeSpiral Flute Tap
