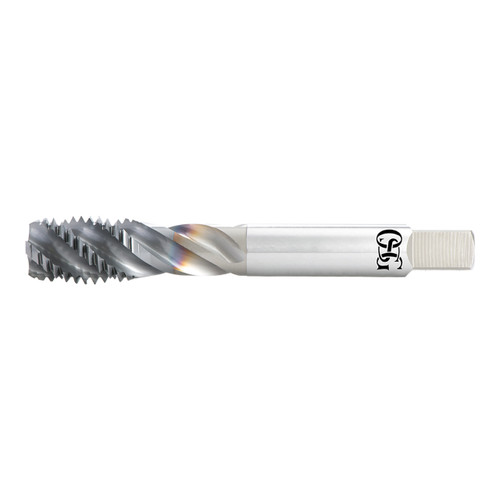

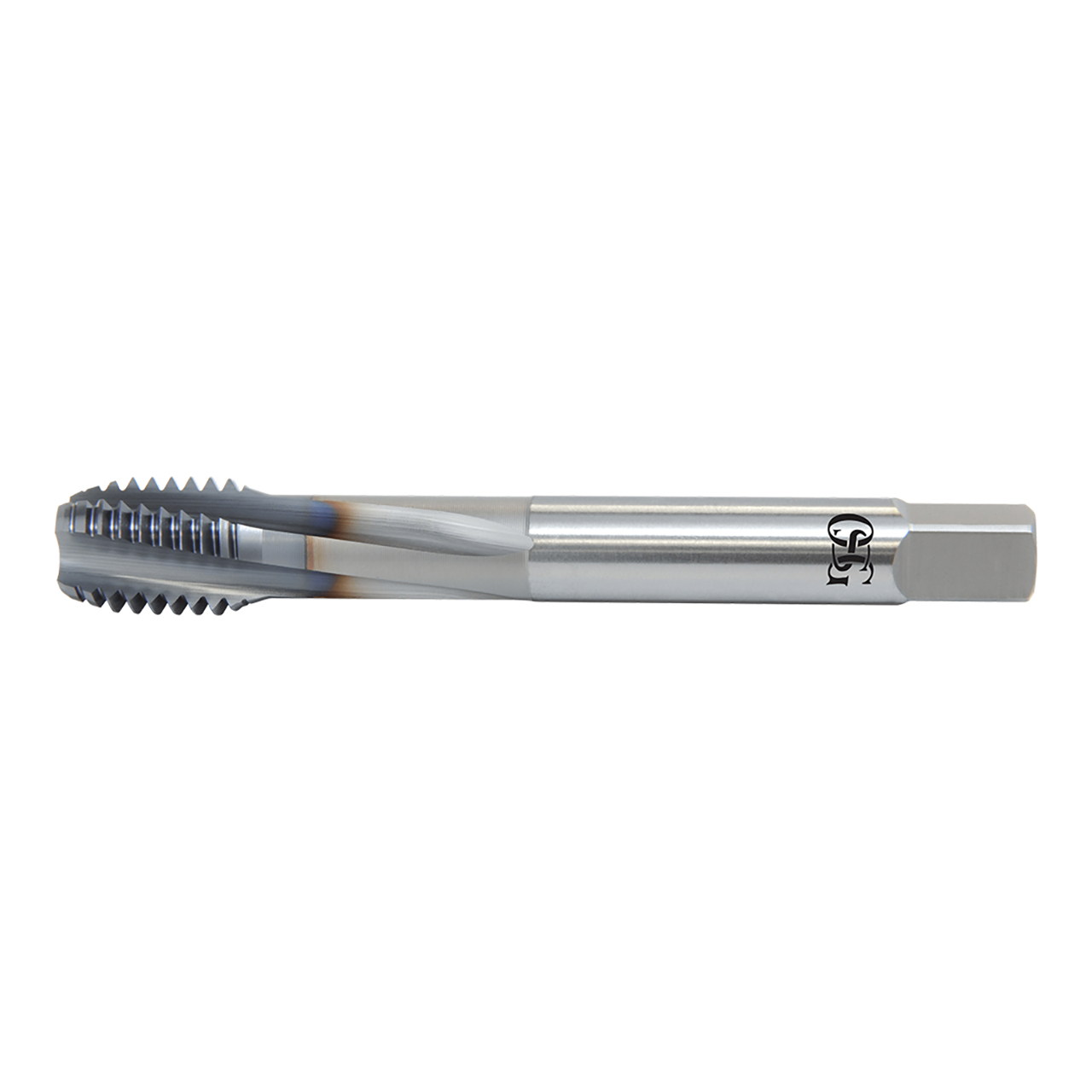

OSG 31721908 | EXOTAP UNF 5/16" - 24 Thread Size x 0.318" Shank x 0.445" Length x 3.543" OAL Modified Bottom (2.5P) Chamfer h4 3 Flute V Coated VC-10 317TI Spiral Flute Tap

OSG 31721908 | EXOTAP UNF 5/16" - 24 Thread Size x 0.318" Shank x 0.445" Length x 3.543" OAL Modified Bottom (2.5P) Chamfer h4 3 Flute V Coated VC-10 317TI Spiral Flute Tap

SKU: 18005166 Weight: 0.07 LBS Minimum Purchase: 1 unit
UPC:
$86.39 $80.34
(You save $6.05)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number31721908
Chamfer Length (Decimal Inch)0.104"
Chamfer TypeModified Bottom (2.5P)
Coolant ThroughYes
Cutting DirectionRight Hand
Helix Angle (Degree)10 Degree
Helix DirectionRight Hand
List NameVC-10 VPO-Ti-SFT
Major Diameter (Decimal Inch)0.313"
Neck Length (Decimal Inch)1.378"
Number of Flutes3
Overall Length (Decimal Inch)3.543"
Shank Diameter (Decimal Inch)0.318"
Square Length (Decimal Inch)0.375"
Square Width (Decimal Inch)0.238"
MaterialVC-10
CoatingV
Tap Drill Size Maximum (Decimal Inch)0.277"
Tap Drill Size Minimum (Decimal Inch)0.267"
Thread Length (Decimal Inch)0.445"
Thread Limith4
Thread Size (Inch)5/16"
Thread TypeUNF
Thread Per Inch (TPI)24 TPI
Series317TI
Product TypeSpiral Flute Tap
