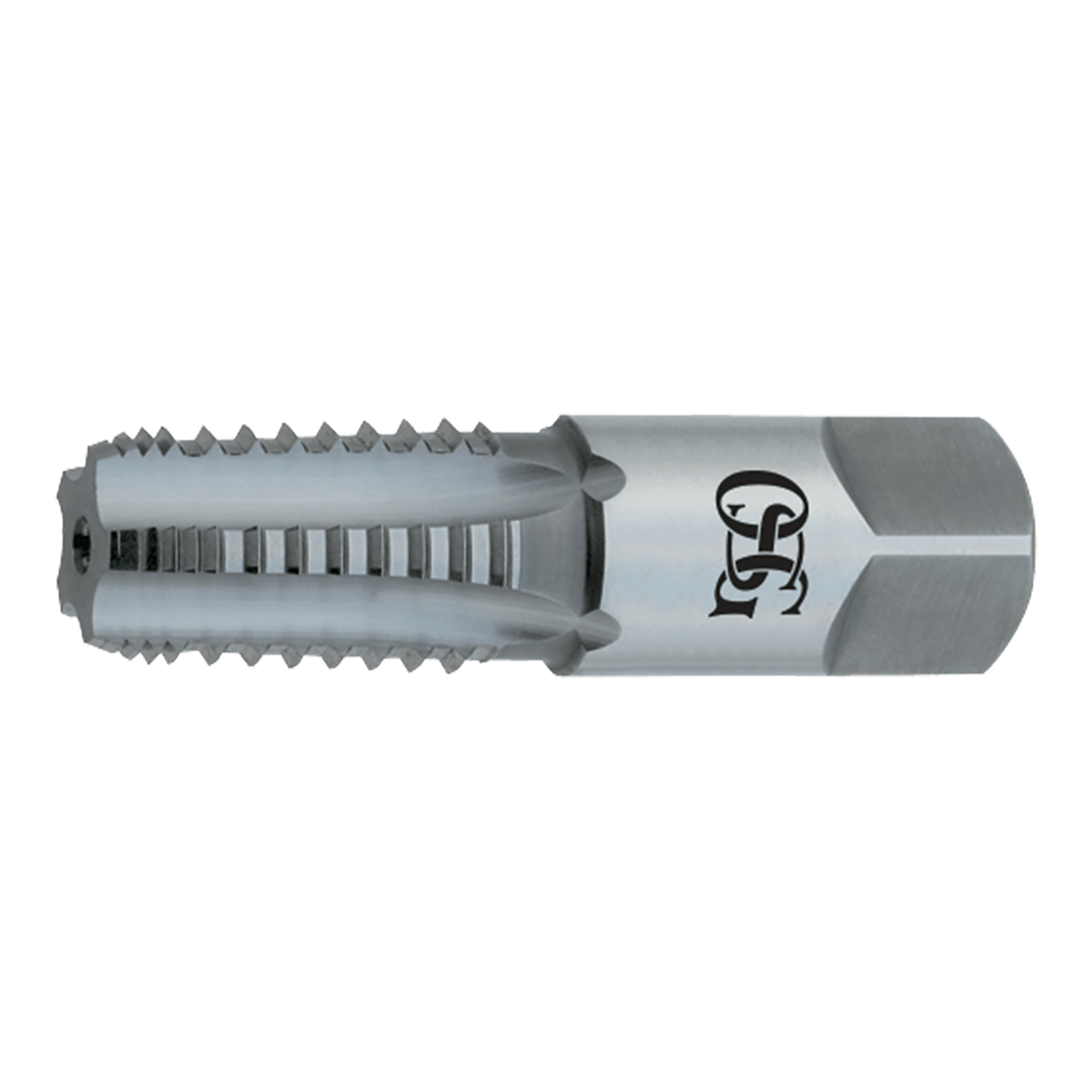

General Purpose spiral point tap series that provides exceptional value for all general threading applications.
Features & Benefits:
- HSS material: Increased wear resistance
- Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
- TiN, TiCN coating: Improves wear resistance for extended tap life
- ANPT, NPT, NPTF: For standard and dry seal tapered pipe thread applications
Product Specifications
| Manufacturer Part Number | 3312500 |
| Cutting Direction | Right Hand |
| Interrupted Thread | Yes |
| List Name | GENERAL PURPOSE-NPT/NPTF/ANPT |
| Major Diameter (Decimal Inch) | 1.000" |
| Number of Flutes | 5 |
| Overall Length (Decimal Inch) | 3.752" |
| Shank Diameter (Decimal Inch) | 1.125" |
| Square Length (Decimal Inch) | 0.813" |
| Square Width (Decimal Inch) | 0.843" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Minimum (Decimal Inch) | 1.141" |
| Thread Length (Decimal Inch) | 1.752" |
| Thread Size (Inch) | 1" |
| Thread Type | NPTF |
| Thread Per Inch (TPI) | 11 TPI |
| Series | 108G |
| Product Type | Interrupted Thread Pipe Tap |
