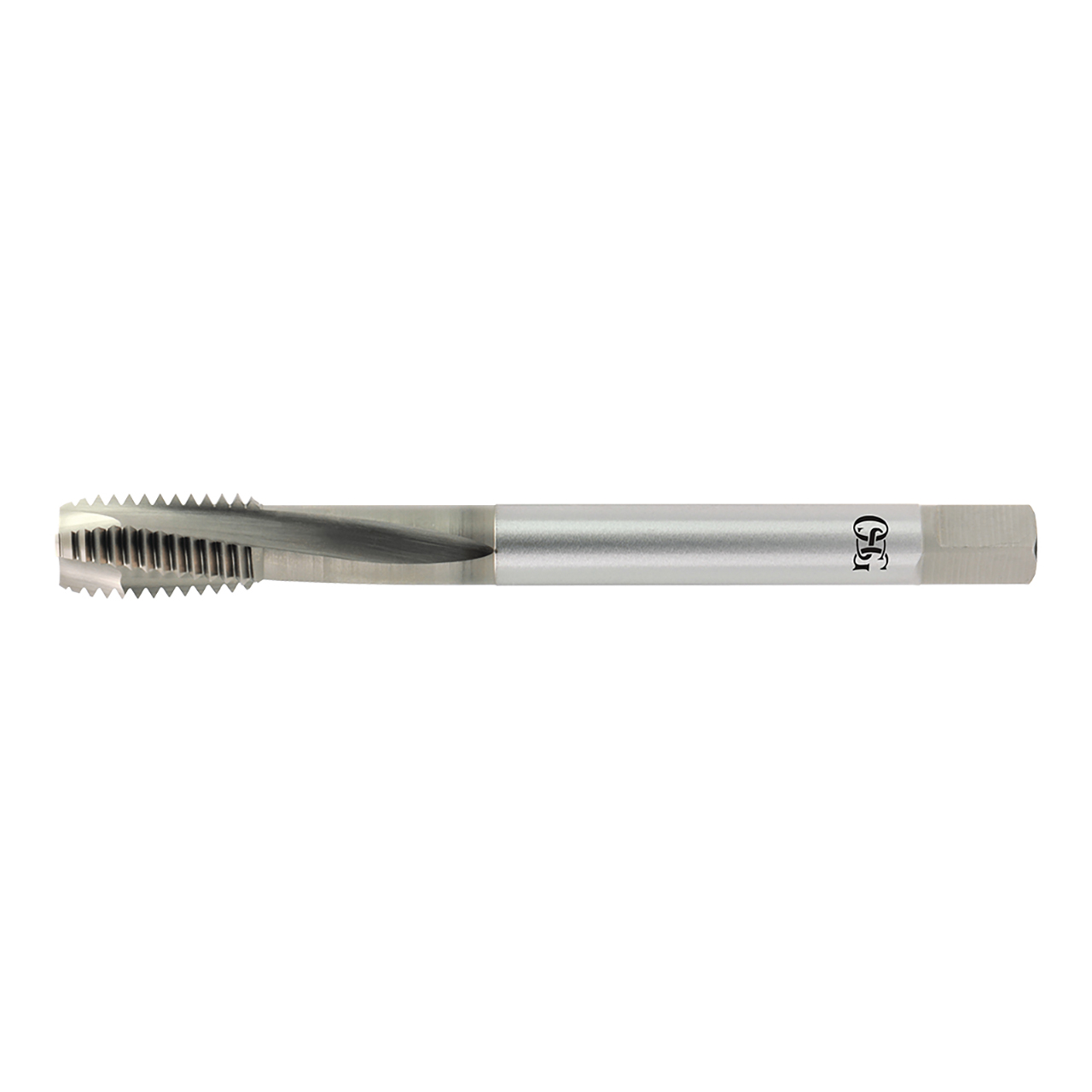

OSG 3350002562 | EXO #2- 56 Thread Size x 0.141" Shank x 0.437" Thread Length x 1.772" OAL UNC H2 Modified Bottom (2.5P) Chamfer Type 2 Flute Right Hand HR Coated VC-10 335NI Spiral Flute Tap

$162.10 $108.61
(You save $53.49)
Brand:
OSG
Flute Direction:
Right Hand
Number of Flutes:
2
Overall Length (Decimal Inch):
1.7720"
Material:
VC-10
Finish/Coating:
HR
Thread Limit:
H2
Threads per Inch:
56 TPI
interval quantity:
1
SKU:
18005282
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 3350002562 | EXO #2- 56 Thread Size x 0.141" Shank x 0.437" Thread Length x 1.772" OAL UNC H2 Modified Bottom (2.5P) Chamfer Type 2 Flute Right Hand HR Coated VC-10 335NI Spiral Flute Tap

The EXOPRO-WHR-Ni spiral flute series is one of OSG’s latest innovations for nickel-based alloy applications. The EXOPRO-WHR-Ni series features a new point flute design to improve cutting edge rigidity, which helps prevent chipping and enables it to excel even in blind holes. With the addition of OSG’s patented HR coating, wear resistance and tool life can be substantially prolonged versus the competition.

Features & Benefits:

  • New point flute geometry: Enables effective machining even in blind holes.
  • Unique rake angle: Improves cutting edge rigidity to prevent edge chipping.
  • OSG’s patented HR coating: Improves wear resistance to prolong tool life.

Product Specifications
Manufacturer Part Number3350002562
Chamfer Length (Decimal Inch)0.045"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)11 Degree
Helix DirectionRight Hand
List NameWHR-Ni-SFT
Major Diameter (Decimal Inch)0.086"
Number of Flutes2
Overall Length (Decimal Inch)1.772"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
MaterialVC-10
CoatingHR
Tap Drill Size Maximum (Decimal Inch)0.074"
Tap Drill Size Minimum (Decimal Inch)0.067"
Thread Length (Decimal Inch)0.437"
Thread LimitH2
Thread SizeNo. 2
Thread Size (Number)#2
Thread TypeUNC
Thread Per Inch (TPI)56 TPI
Series335NI
Product TypeSpiral Flute Tap
