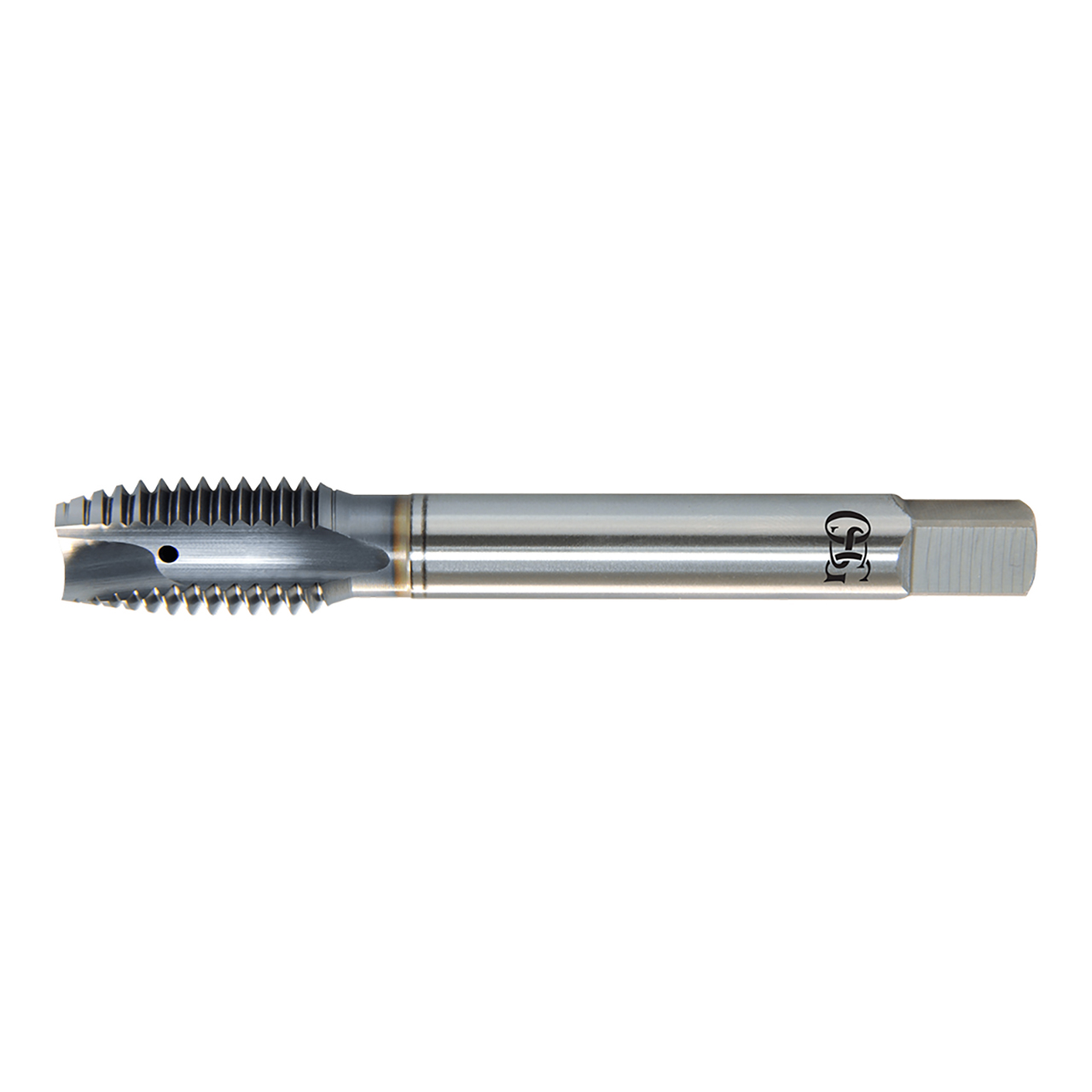

OSG 34601108 | EXOTAP MF M12.00x1.50mm Thread Size x 9.32mm Shank x 21.00mm Length x 10.00mm OAL Plug (4P) Chamfer D6 3 Flute V Coated HSSE 346 Spiral Point Tap

$104.72 $97.39
(You save $7.33)
Brand:
OSG
Thread Size (mm):
12.00mm
Class of Fit:
4H, 6H
Thread Limit:
D6
Number of Flutes:
3
Chamfer:
Plug (4P)
Finish/Coating:
V
Material:
HSSE
Through Coolant:
Yes
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
18005433
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 34601108 | EXOTAP MF M12.00x1.50mm Thread Size x 9.32mm Shank x 21.00mm Length x 10.00mm OAL Plug (4P) Chamfer D6 3 Flute V Coated HSSE 346 Spiral Point Tap

EXOTAP VA-3 is the premium solution for tapping performance in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number34601108
Chamfer Length (Decimal Inch)0.236"
Major Diameter (mm)12.00mm
Neck Length (mm)32.00mm
Number of Flutes3
Overall Length (mm)100.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
Maximum Tap Drill Size (mm)10.68mm
Minimum Tap Drill Size (mm)10.38mm
Thread Length (mm)21.00mm
Thread SizeM12
CoatingV
MaterialHSSE
Series346 Series
Product TypeSpiral Point Tap
