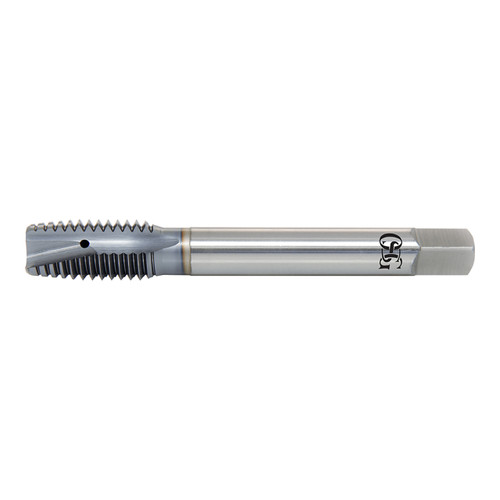

OSG 34721008 | EXO M12 x 1.50mm Thread Size x 9.32mm Shank x 21.00mm Thread Length MF D6 Plug (5P) Chamfer Type 3 Flute Right Hand V Coated VC-10 347TI Spiral Point Tap

$145.34 $135.17
(You save $10.17)
Brand:
OSG
Thread Size (mm):
12.00mm
Class of Fit:
4H, 6H
Thread Limit:
D6
Number of Flutes:
3
Chamfer:
Plug (5P)
Finish/Coating:
V
Material:
VC-10
Through Coolant:
Yes
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
18005470
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 34721008 | EXO M12 x 1.50mm Thread Size x 9.32mm Shank x 21.00mm Thread Length MF D6 Plug (5P) Chamfer Type 3 Flute Right Hand V Coated VC-10 347TI Spiral Point Tap

EXOTAP VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number34721008
Chamfer Length (Decimal Inch)0.295"
Major Diameter (mm)12.00mm
Neck Length (mm)32.00mm
Number of Flutes3
Overall Length (mm)100.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
Maximum Tap Drill Size (mm)10.68mm
Minimum Tap Drill Size (mm)10.38mm
Thread Length (mm)21.00mm
Thread SizeM12
CoatingV
MaterialVC-10
Series347TI Series
Product TypeSpiral Point Tap
