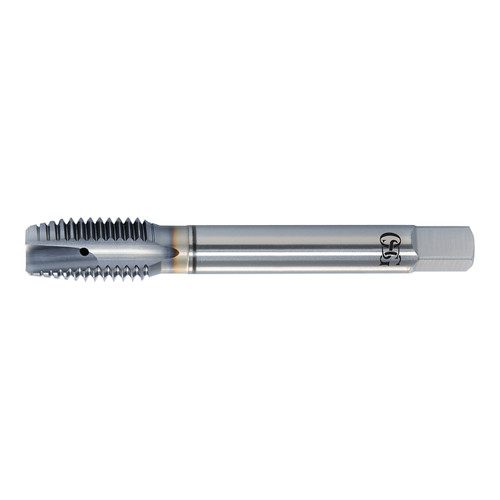

OSG 34721208 | EXOTAP MF M14.00x1.50mm Thread Size x 10.90mm Shank x 24.00mm Length x 10.00mm OAL Plug (5P) Chamfer D6 3 Flute V Coated VC-10 347TI Spiral Point Tap

OSG 34721208 | EXOTAP MF M14.00x1.50mm Thread Size x 10.90mm Shank x 24.00mm Length x 10.00mm OAL Plug (5P) Chamfer D6 3 Flute V Coated VC-10 347TI Spiral Point Tap

SKU: 18005471 Weight: 0.17 LBS Minimum Purchase: 1 unit
UPC:
$173.93 $161.75
(You save $12.18)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number34721208
Chamfer Length (Decimal Inch)0.295"
Major Diameter (mm)14.00mm
Neck Length (mm)36.00mm
Number of Flutes3
Overall Length (mm)100.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)10.90mm
Square Length (mm)12.70mm
Square Width (mm)8.18mm
Maximum Tap Drill Size (mm)12.68mm
Minimum Tap Drill Size (mm)12.38mm
Thread Length (mm)24.00mm
Thread SizeM14
CoatingV
MaterialVC-10
Series347TI Series
Product TypeSpiral Point Tap
