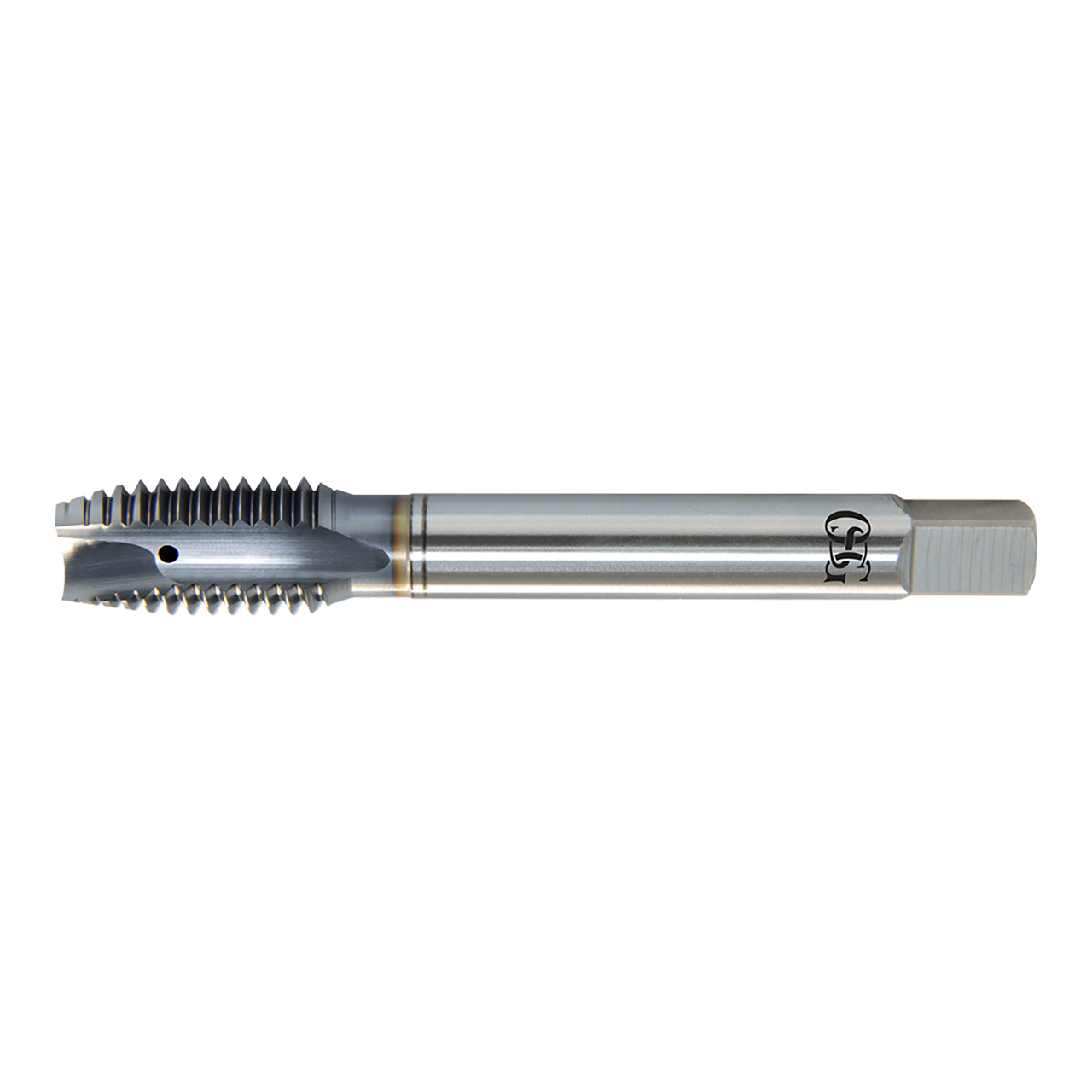

OSG 34602408 | EXOTAP M M24.00x3.00mm Thread Size x 19.30mm Shank x 36.00mm Length x 16.00mm OAL Plug (4P) Chamfer D8 3 Flute V Coated HSSE 346 Spiral Point Tap

OSG 34602408 | EXOTAP M M24.00x3.00mm Thread Size x 19.30mm Shank x 36.00mm Length x 16.00mm OAL Plug (4P) Chamfer D8 3 Flute V Coated HSSE 346 Spiral Point Tap

SKU: 18005446 Weight: 0.76 LBS Minimum Purchase: 1 unit
UPC:
$361.93 $336.59
(You save $25.34)
Shipping: Free Shipping

About This Item

EXOTAP VA-3 is the premium solution for tapping performance in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides additional reach capability

Product Specifications
Manufacturer Part Number34602408
Chamfer Length (Decimal Inch)0.472"
Major Diameter (mm)24.00mm
Neck Length (mm)51.00mm
Number of Flutes3
Overall Length (mm)160.00mm
Pitch (mm)3.00mm
Shank Diameter (mm)19.30mm
Square Length (mm)19.05mm
Square Width (mm)14.48mm
Maximum Tap Drill Size (mm)21.25mm
Minimum Tap Drill Size (mm)20.75mm
Thread Length (mm)36.00mm
Thread SizeM24
CoatingV
MaterialHSSE
Series346 Series
Product TypeSpiral Point Tap
