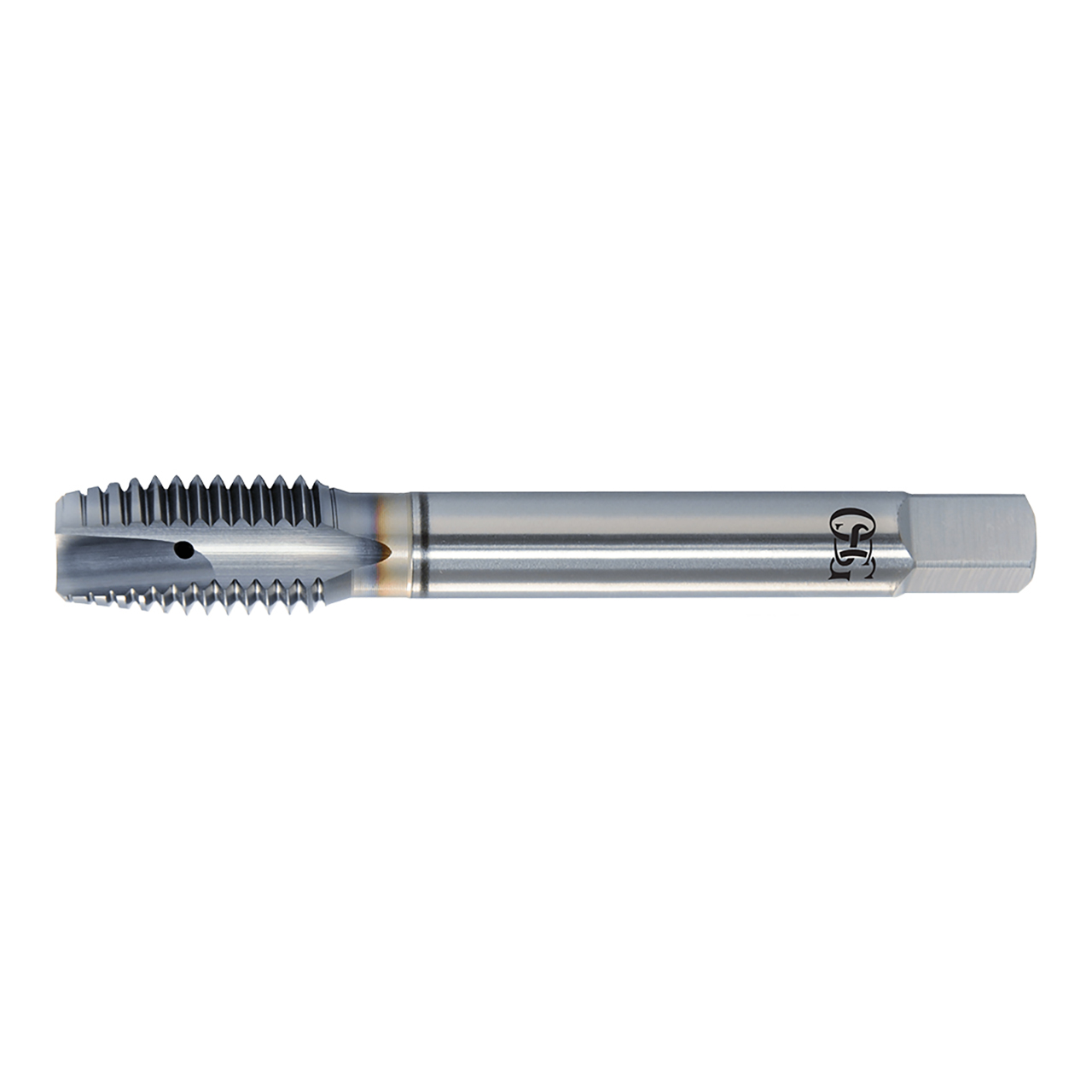

EXOTAP VC-10 is the premium solution for unsurpassed performance in difficult to machine materials.
Features & Benefits:
- Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
- Spiral Point: For through hole applications
- OSG V-Coating: Increased hardness, lubricity & wear resistance
- DIN Overall Length: Provides greater reach capability
Product Specifications
| Manufacturer Part Number | 35002308 |
| Chamfer Length (Decimal Inch) | 0.591" |
| Major Diameter (mm) | 24.00mm |
| Neck Length (mm) | 51.00mm |
| Number of Flutes | 4 |
| Overall Length (mm) | 160.00mm |
| Pitch (mm) | 3.00mm |
| Shank Diameter (mm) | 19.30mm |
| Square Length (mm) | 19.05mm |
| Square Width (mm) | 14.48mm |
| Maximum Tap Drill Size (mm) | 21.25mm |
| Minimum Tap Drill Size (mm) | 20.75mm |
| Thread Length (mm) | 36.00mm |
| Thread Size | M24 |
| Coating | V |
| Material | VC-10 |
| Series | 350 Series |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
OSG
Thread Size (mm):
24.00mm
Class of Fit:
4H, 6H
Thread Limit:
D8
Number of Flutes:
4
Chamfer:
Plug (5P)
Finish/Coating:
V
Material:
VC-10
Through Coolant:
Yes
Cutting Direction:
Right Hand
