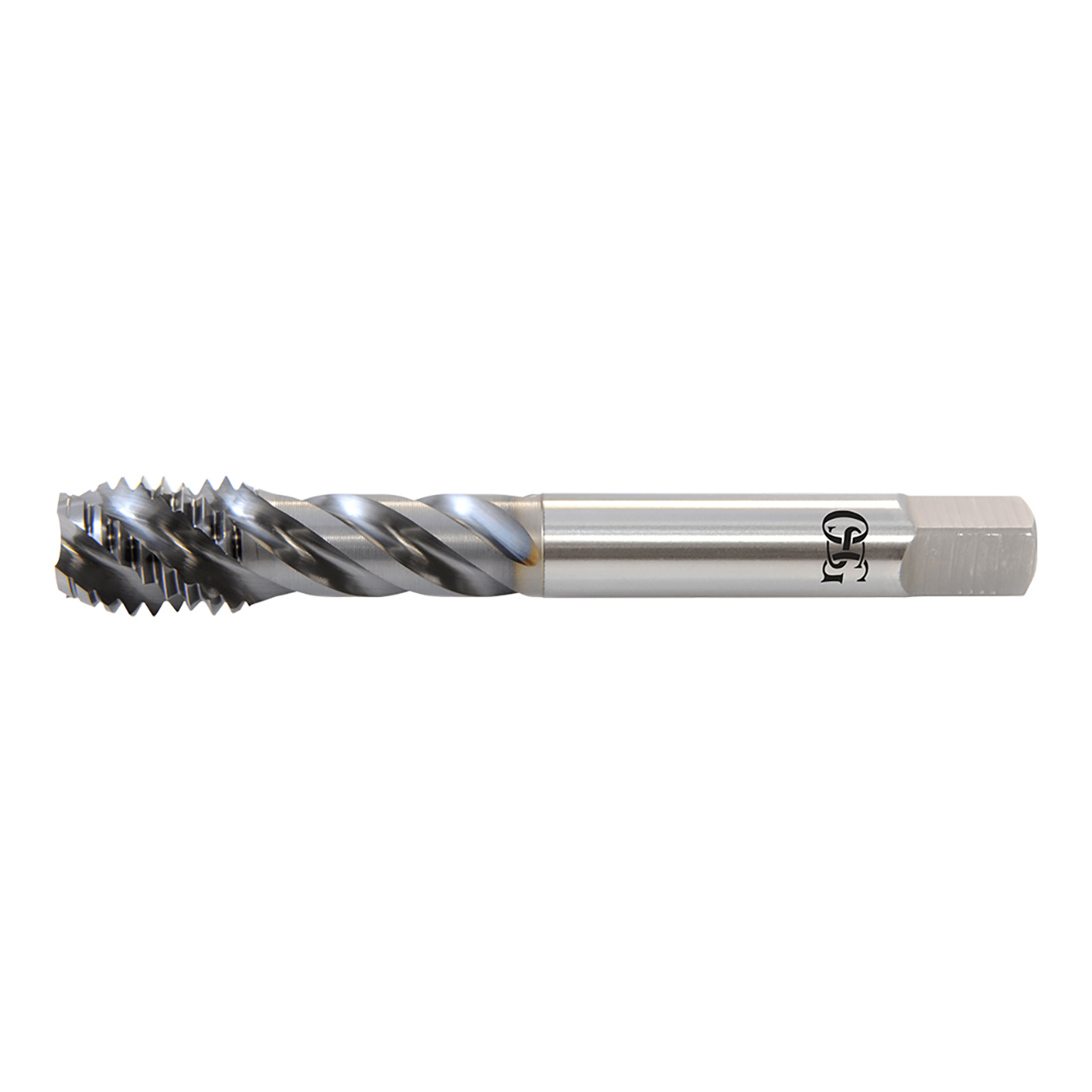

OSG 34701108 | EXOTAP MF M12.00x1.50mm Thread Size x 9.32mm Shank x 14.00mm Length x 10.00mm OAL Modified Bottom (2.5P) Chamfer D6 3 Flute V Coated HSSE 347 Spiral Flute Tap

OSG 34701108 | EXOTAP MF M12.00x1.50mm Thread Size x 9.32mm Shank x 14.00mm Length x 10.00mm OAL Modified Bottom (2.5P) Chamfer D6 3 Flute V Coated HSSE 347 Spiral Flute Tap

SKU: 18005453 Weight: 0.10 LBS Minimum Purchase: 1 unit
UPC:
$128.00 $119.04
(You save $8.96)
Shipping: Calculated at Checkout

About This Item

EXOTAP VA-3 is the premium solution for tapping in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number34701108
Chamfer Length (Decimal Inch)0.148"
Chamfer TypeModified Bottom (2.5P)
Coolant ThroughYes
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameVA-3 OIL-V-SFT
Major Diameter (mm)12.00mm
Neck Length (mm)49.10mm
Number of Flutes3
Overall Length (mm)100.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
MaterialHSSE
CoatingV
Tap Drill Size Maximum (mm)10.68mm
Tap Drill Size Minimum (mm)10.38mm
Thread Length (mm)14.00mm
Thread LimitD6
Thread SizeM12
Thread TypeMF
Series347
Product TypeSpiral Flute Tap
