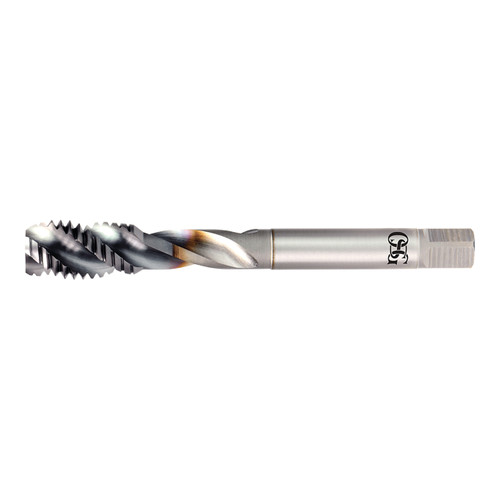

OSG 35101108 | EXOTAP MF M12.00x1.50mm Thread Size x 9.32mm Shank x 14.00mm Length x 10.00mm OAL Modified Bottom (2.5P) Chamfer D6 3 Flute V Coated VC-10 351 Spiral Flute Tap

OSG 35101108 | EXOTAP MF M12.00x1.50mm Thread Size x 9.32mm Shank x 14.00mm Length x 10.00mm OAL Modified Bottom (2.5P) Chamfer D6 3 Flute V Coated VC-10 351 Spiral Flute Tap

SKU: 18005512 Weight: 0.11 LBS Minimum Purchase: 1 unit
UPC:
$134.24 $124.84
(You save $9.40)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 is the premium solution for tapping in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number35101108
Chamfer Length (Decimal Inch)0.148"
Major Diameter (mm)12.00mm
Neck Length (mm)49.10mm
Number of Flutes3
Overall Length (mm)100.00mm
Pitch (mm)1.50mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
Maximum Tap Drill Size (mm)10.68mm
Minimum Tap Drill Size (mm)10.38mm
Thread Length (mm)14.00mm
Thread SizeM12
CoatingV
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)15 Degree
Series351 Series
Product TypeSpiral Flute Tap
