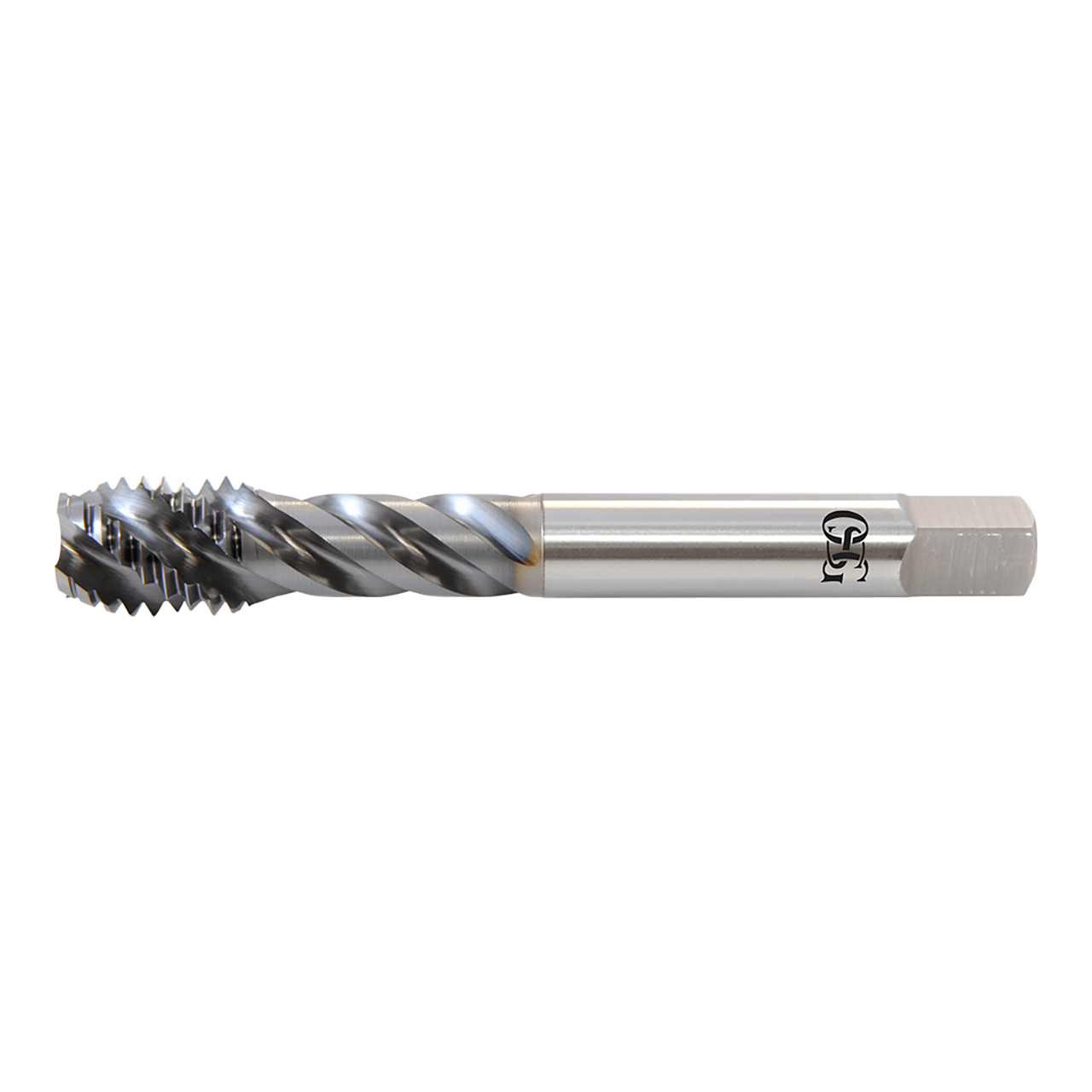

OSG 34701808 | EXOTAP M M18.00x2.50mm Thread Size x 13.77mm Shank x 2.00mm Length x 125.00mm OAL Modified Bottom (2.5P) Chamfer D7 4 Flute V Coated HSSE 347 Spiral Flute Tap

OSG 34701808 | EXOTAP M M18.00x2.50mm Thread Size x 13.77mm Shank x 2.00mm Length x 125.00mm OAL Modified Bottom (2.5P) Chamfer D7 4 Flute V Coated HSSE 347 Spiral Flute Tap

SKU: 18005460 Weight: 0.28 LBS Minimum Purchase: 1 unit
UPC:
$204.96 $190.61
(You save $14.35)
Shipping: Calculated at Checkout

About This Item

EXOTAP VA-3 is the premium solution for tapping in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number34701808
Chamfer Length (Decimal Inch)0.246"
Chamfer TypeModified Bottom (2.5P)
Coolant ThroughYes
Cutting DirectionRight Hand
Helix Angle (Degree)45 Degree
Helix DirectionRight Hand
List NameVA-3 OIL-V-SFT
Major Diameter (mm)18.00mm
Neck Length (mm)55.00mm
Number of Flutes4
Overall Length (mm)125.00mm
Pitch (mm)2.50mm
Shank Diameter (mm)13.77mm
Square Length (mm)15.88mm
Square Width (mm)10.31mm
MaterialHSSE
CoatingV
Tap Drill Size Maximum (mm)15.74mm
Tap Drill Size Minimum (mm)15.29mm
Thread Length (mm)20.00mm
Thread LimitD7
Thread SizeM18
Thread TypeM
Series347
Product TypeSpiral Flute Tap
