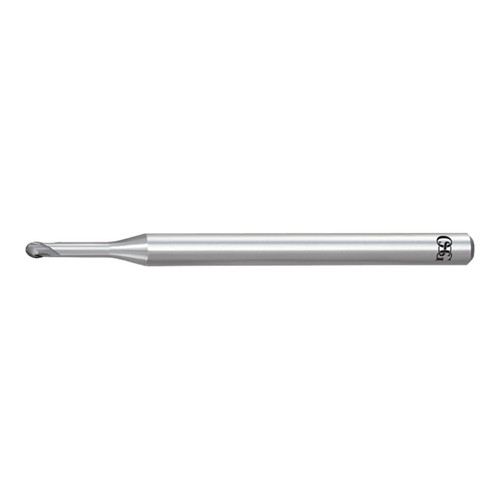

Premium High Performance Carbide Ball Mills for Pre-hardened & Hardened Steels.
Features & Benefits:
- Ultra-fine micrograin carbide: The hardest ost wear resistant carbide possible for incredible wear resistance.
- High Precision geometry - Ball End Mills have +/-5um radius tolerance: High accuracy all but eliminates need for benching and rework for mold makers.
- High strength core diameter: Tools utilize thicker core diameters for the ultimate in strength and rigidity.
- WXL coating - +1100 Celsius Oxidation Temp. & +3100Hv in hardness: Higher coating oxidation temp & hardness dramatically improve wear resistance.
Product Specifications
| Manufacturer Part Number | 36901211 |
| Corner Radius (Decimal Inch) | 0.063" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1/8" |
| Diameter (Decimal Inch) | 0.125" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 0.125" |
| List Name | WXL-LN-EBD |
| Neck Diameter (Decimal Inch) | 0.123" |
| Neck Length (Decimal Inch) | 0.625" |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 3.000" |
| Radius Tolerance (Decimal Inch) | +/- 0.0002" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | WXL |
| Series | 3690 |
| Product Type | Ball End Mill |
