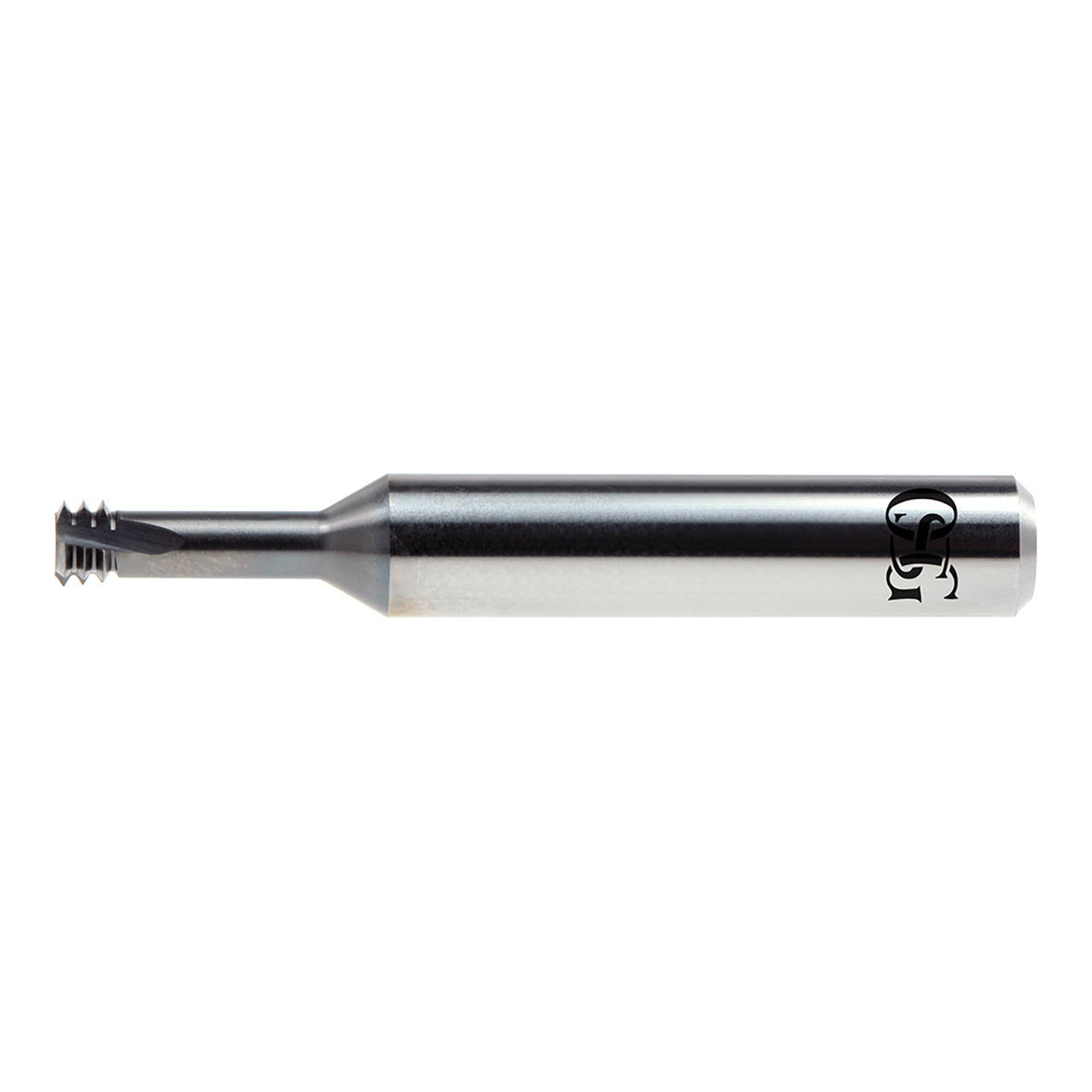

OSG 4120001013 | EXO No. 8 Thread Size x 0.129" Diameter x 0.250" Shank x 0.083" LOC x 1.661"OAL 3 Flute UNF 36 TPI WXS Coated Carbide 41200 Helical Flute Thread Mill

$258.46 $245.54
(You save $12.92)
Brand:
OSG
Length of Cut (Decimal Inch):
0.0830"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
WXS
interval quantity:
1
SKU:
25285804
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 4120001013 | EXO No. 8 Thread Size x 0.129" Diameter x 0.250" Shank x 0.083" LOC x 1.661"OAL 3 Flute UNF 36 TPI WXS Coated Carbide 41200 Helical Flute Thread Mill

The newly expanded EXOCARB thread mills now includes longer lengths, miniature mills and coolant-fed thread mills. All utilizing OSG's premium sub-micrograin carbide for hardness, helical flutes for free cutting action andEXO multi-layered coating for ultimate wear resistance and tool life.

Features & Benefits:

  • Optimized flute geometry: Reduced cutting forces
  • OSG's EXO multi-layered TiAlN coating: Improves wear resistance for extended tool life
  • Inch, Metric and Pipe: For internal inch, metric and pipe threads

Product Specifications
Manufacturer Part Number4120001013
Diameter (Decimal Inch)0.129"
Length of Cut (Decimal Inch)0.083"
Major Diameter (Decimal Inch)0.129"
Neck Length (Decimal Inch)0.354"
Number of Flutes3
Overall Length (Decimal Inch)1.661"
Shank Diameter (Decimal Inch)0.250"
Thread Size NumberNo. 8
CoatingWXS
MaterialCarbide
Helix DirectionRight Hand
Helix Angle (Degree)11 Degree
Series41200 Series
Product TypeHelical Flute Thread Mill
