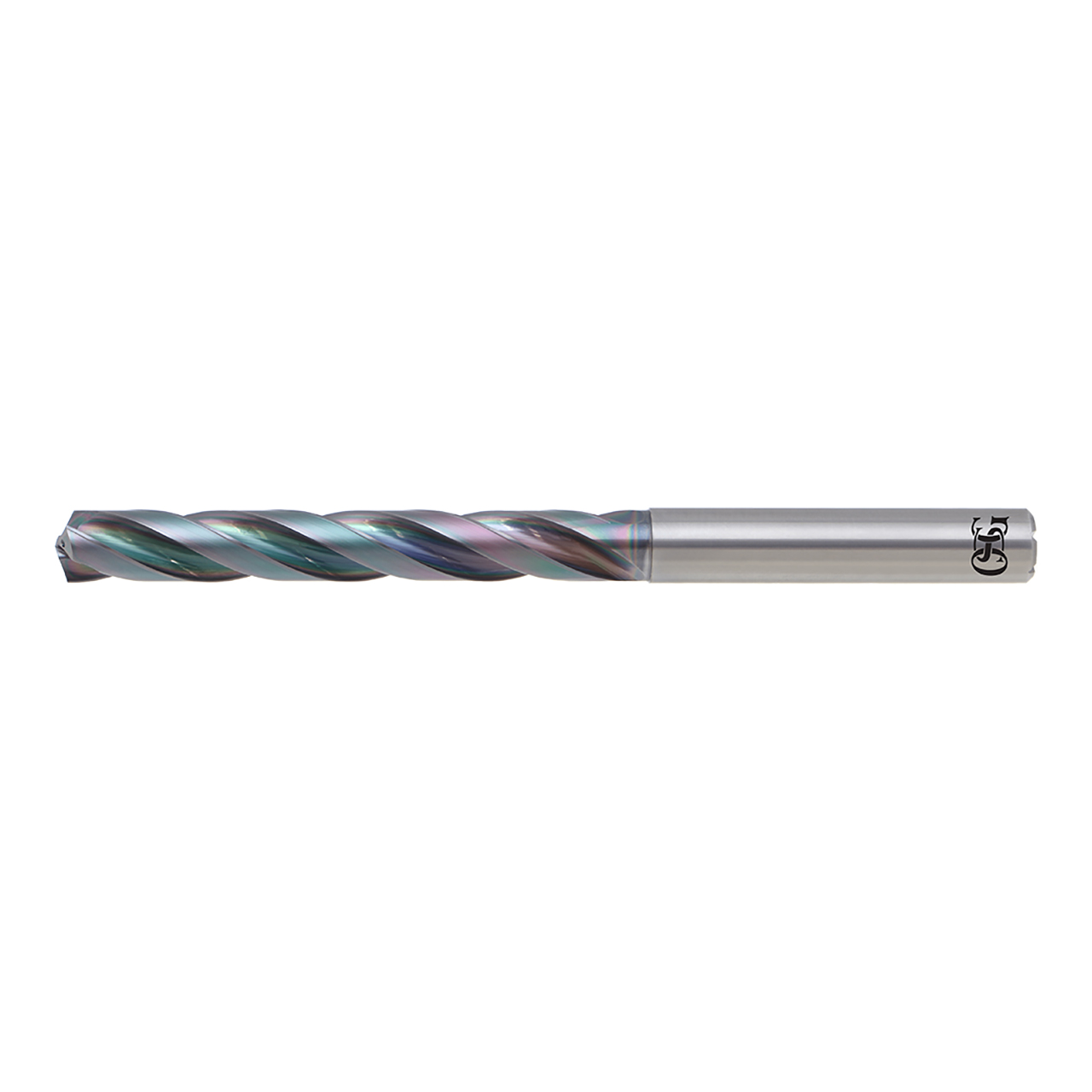

OSG 661029617 | A Brand 19/64" Drill Size x 0.313" Shank x 6.00mm Flute Length x 118.00mm OAL x 140 Degree Point Angle 3 Flute EgiAs Coated Carbide 6610 Jobber Length Drill Bit

SKU: 10294394 Weight: 0.14 LBS Minimum Purchase: 1 unit
UPC:
$293.72 $255.54
(You save $38.18)
Shipping: Free Shipping

About This Item

A Brand ADO-TRS is an Advanced Performance High Feed 3-Flute Carbide Drill. Patented geometry permits stable chip ejection, even with less chip pocket space inherent in 3-flute drills. The result is up to 3X faster than 2-flute drills and up to 3X longer life.

Features & Benefits:

  • EgiAs Coating: For exceptional wear resistance and toughness
  • 3 Flute Design: For reduced vibration and stable drilling
  • Coolant Through: For reduced heat and improved chip evacuation

Product Specifications
Manufacturer Part Number661029617
Coolant ThroughYes
Cutting Diameter Tolerance (Decimal Inch)+0 / -0.0009"
Cutting Diameter Tolerance (mm)+0 / -0.022mm
Cutting Diameter Tolerance Specificationh8
Cutting DirectionRight Hand
Diameter (Inch)19/64"
Diameter (Decimal Inch)0.297"
Diameter (mm)7.54mm
Flute Length (mm)60.00mm
Helix Angle (Degree)30 Degree
Helix DirectionRight Hand
List NameADO-TRS-5D
Number of Flutes3
Overall Length (mm)118.00mm
Point Angle (Degree)140 Degree
Shank Diameter (Decimal Inch)0.313"
Shank Toleranceh6
MaterialCarbide
CoatingEgiAs
Series6610
Product TypeJobber Length Drill Bit
