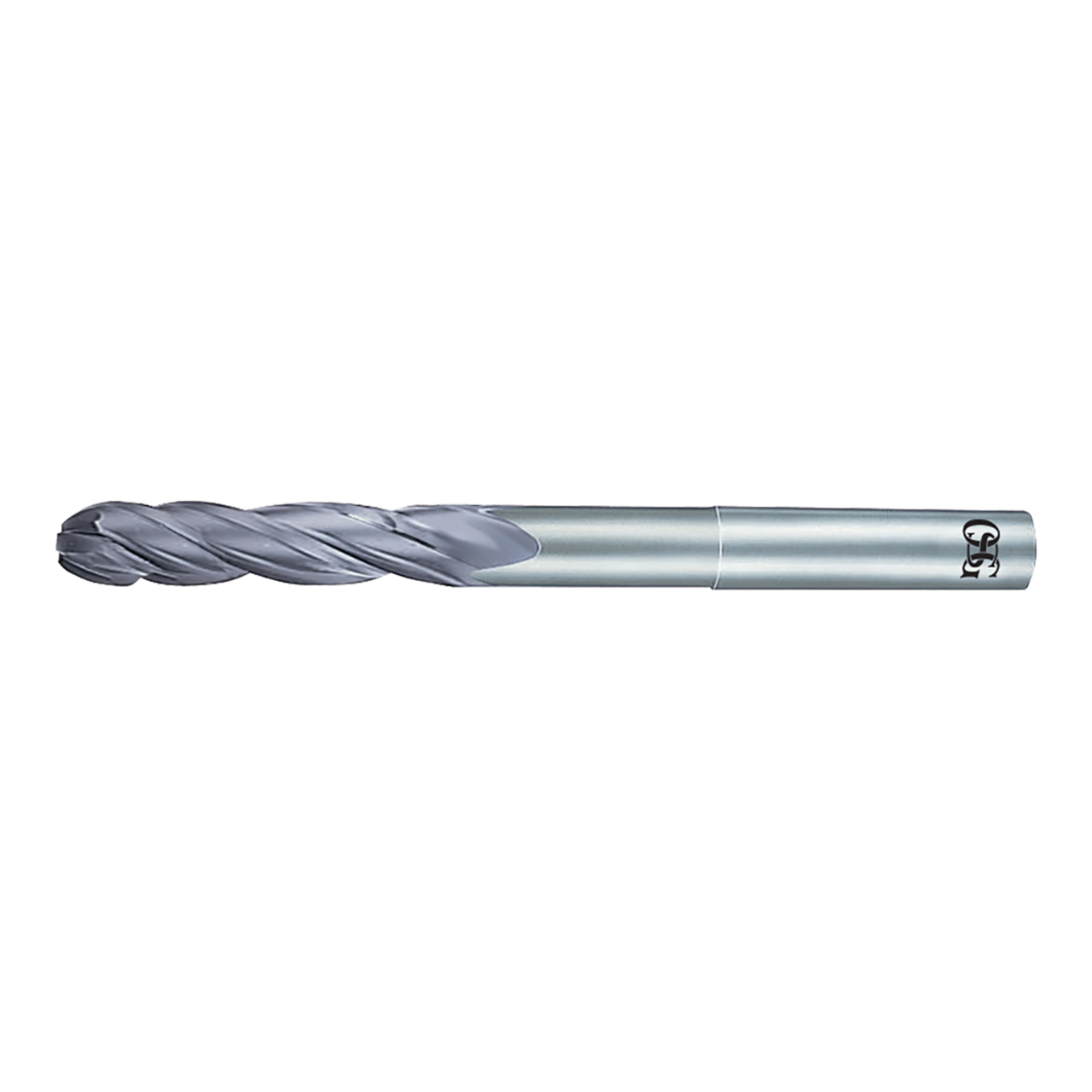

High Performance Diamond Coated Ball Mills for Graphite & Non-Ferrous Materials.
| Manufacturer Part Number | 70311416 |
| Corner Radius (Decimal Inch) | 0.188" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 3/8" |
| Diameter (Decimal Inch) | 0.375" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 1.500" |
| List Name | DIAMOND D-GF-EBML |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 4.000" |
| Radius Tolerance (Decimal Inch) | +0 / -0.0015" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | DIAMOND |
| Series | 7031 |
| Product Type | Ball End Mill |
