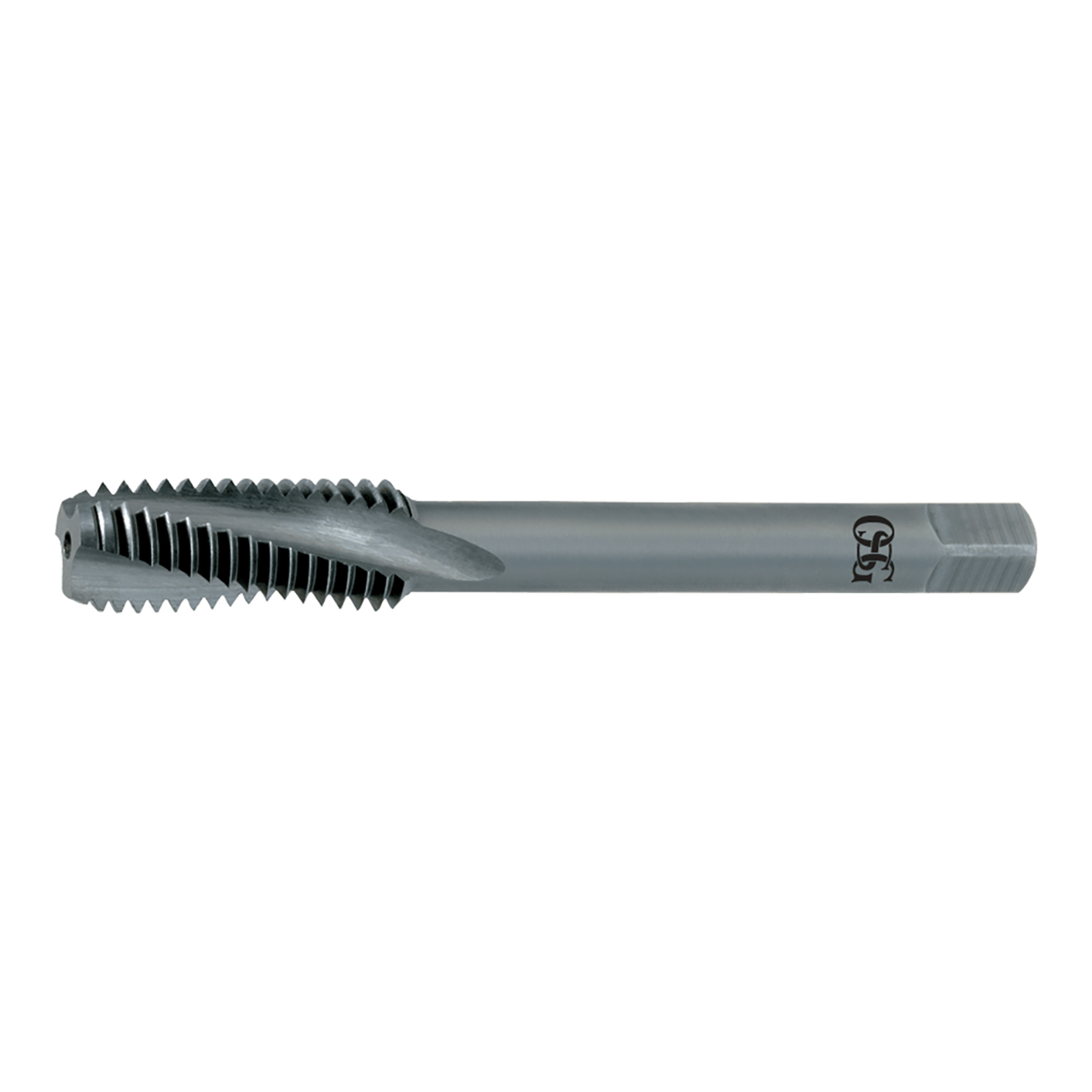

The EXOCARB Carbide Taps are designed to excel in Alminum, Alminum Casting and Cast Iron. TiAN and TiCN Coating are available upon request for a longer tool life.
Features & Benefits:
- Micrograin carbide body: Superior hardness & wear resistance versus High Speed Steel
- Modified Bottom: Provides versatile use in both through and blind hole applications
- TiCN and TiALN coatings available upon requests: Provides High hardness with improved wear resistance and Increased production levels with longer tool life.
Product Specifications
| Manufacturer Part Number | 8315266 |
| Chamfer Length (Decimal Inch) | 0.079" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Helix Direction | Right Hand |
| List Name | OT-SFT |
| Major Diameter (mm) | 5.00mm |
| Neck Length (mm) | 23.90mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 60.00mm |
| Pitch (mm) | 0.80mm |
| Shank Diameter (mm) | 5.50mm |
| Square Length (mm) | 7.00mm |
| Square Width (mm) | 4.50mm |
| Material | Carbide |
| Coating | Bright |
| Tap Drill Size Maximum (mm) | 4.33mm |
| Tap Drill Size Minimum (mm) | 4.13mm |
| Thread Length (mm) | 15.90mm |
| Thread Limit | OH3 |
| Thread Size | M5 |
| Thread Type | M |
| Series | 389 |
| Product Type | Spiral Flute Tap |
