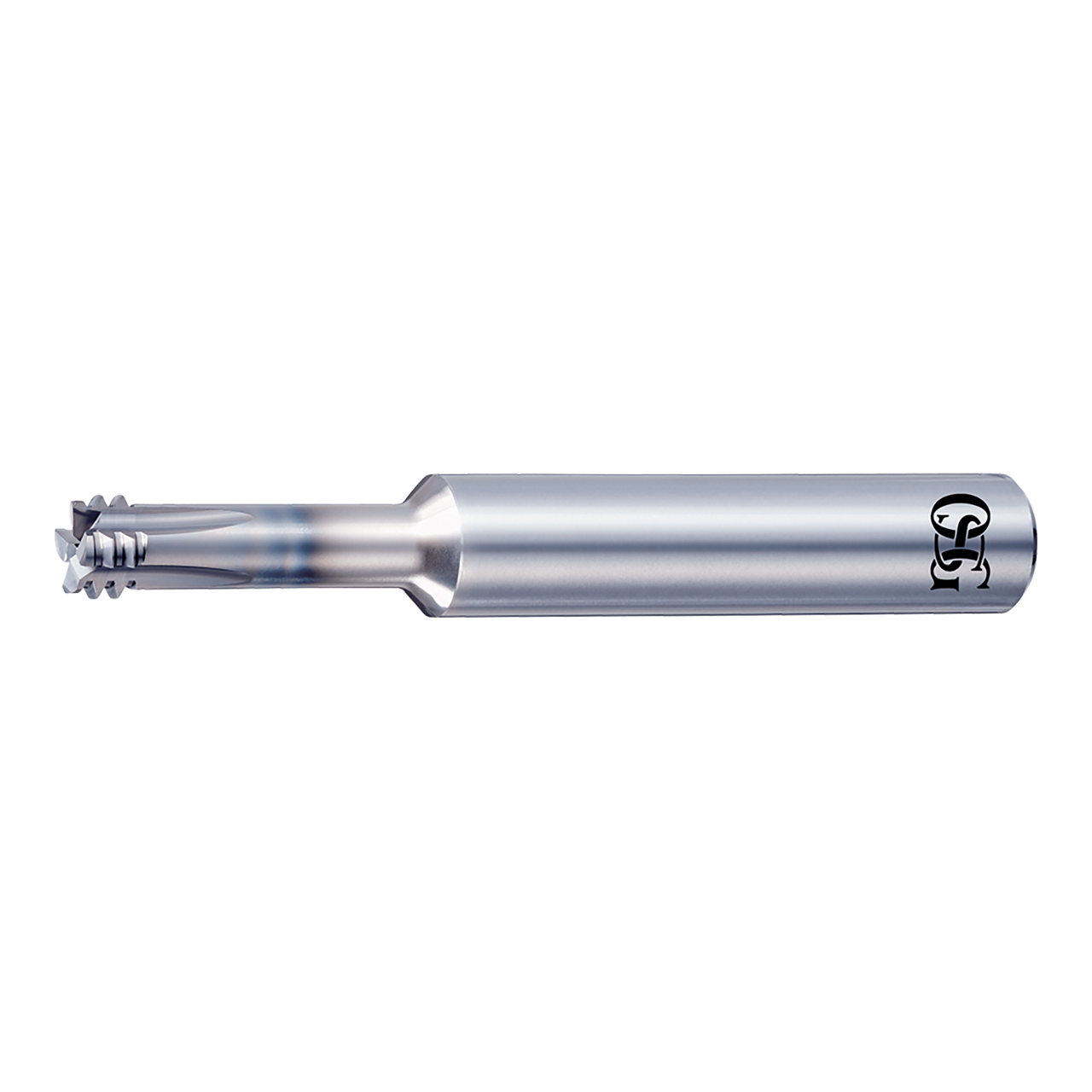

The OSG A Brand AT-2 Thread mills with end-cutting edge for high hardness steels is ideal for highly difficult high hardness steel applications. The risk of sudden tool breakage can be minimized by breaking chips into small and manageable pieces and evacuating them smoothly. Since no pilot hole is required, process integration and the risk of breakage can be avoided.
Features & Benefits:
- Newly developed DUROREY coating: enables superior heat resistance and high toughness optimized for high-hardness steel milling!
- Special cutting edge shape: Controls tool deflection
- Left-hand cut configuration: Enables climb milling to prolong tool life
- Added roughing teeth: to distribute the load
Product Specifications
| Manufacturer Part Number | 8331201 |
| Cutting Direction | Left Hand |
| Diameter (mm) | 3.10mm |
| Length of Cut (mm) | 2.10mm |
| List Name | AT-2 |
| Major Diameter (mm) | 3.10mm |
| Neck Diameter d1 (mm) | 2.30mm |
| Neck Length (mm) | 9.75mm |
| Number of Flutes | 4 |
| Overall Length (mm) | 50.00mm |
| Pitch (mm) | 0.70mm |
| Shank Diameter (mm) | 6.00mm |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | DUROREY |
| Thread Size | M4 |
| Thread Type | M |
| Series | 16640 |
| Product Type | Helical Flute Thread Mill |
