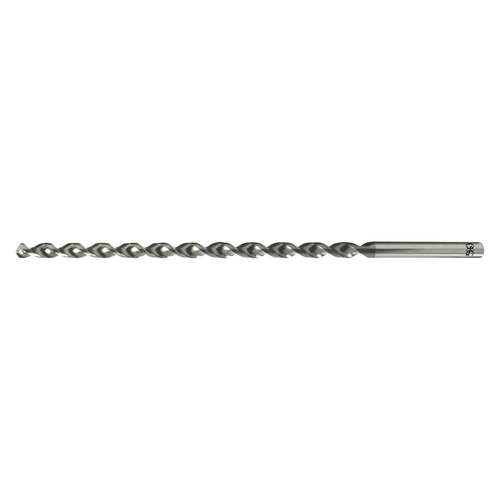

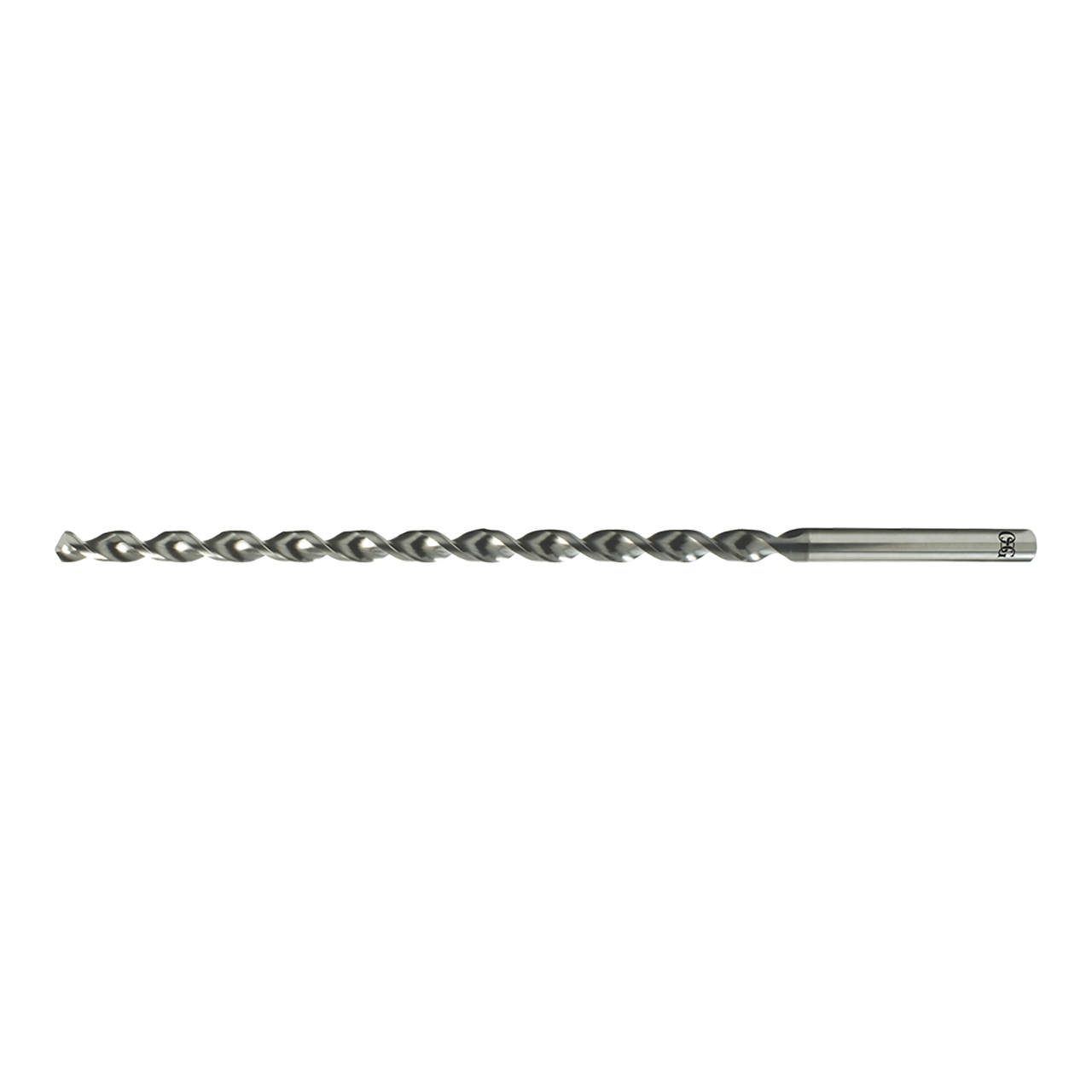

The V-Series HELIOS is the 1st drill to process deep Holes 10X-20X diameter, without pecking and without the use of internal coolant supply. Flute form, point thining and compound lead construction are all patented technologies developed by OSG to make this drill do what no other parabolic HSS-Co drill can. The addition ofexclusive WXL coating technology makes non-peck drilling repeatable, even in the longest of production runs.
Features & Benefits:
- Pat. Low-Resistance web thinning: Reduces penetration force by as much as 35%
- OSG WXL Nano Coating: Higher coating oxidation temperature & Hardness dramatically improve Wear Resistance
- Pat. Flat Flute Form: Looks like parabolic, but isn't! This flute form ensures extra space while increasing chip evacuation velocity
- Pat. Compound Flute Contruction: Ensure chips curl tighly and move freely through the flutes to ensure stable evacuation
Product Specifications
| Manufacturer Part Number | 8623110 |
| Diameter (Decimal Inch) | 0.433" |
| Diameter (mm) | 11.00mm |
| Flute Length (mm) | 200.00mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 280.00mm |
| Shank Diameter (mm) | 11.00mm |
| Coating | WXL |
| Material | HSS-CO |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 40 Degree |
| Point Angle (Degree) | 120 Degree |
| Product Type | Extra Long Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Diameter (Decimal Inch):
0.4330"
Overall Length (mm):
280.00mm
Shank Diameter (mm):
11.00mm
Helix Angle:
40 Degree
Number of Flutes:
2
Material:
HSS-CO
Finish/Coating:
WXL
Cutting Direction:
Right Hand
Point Angle:
120 Degree
