Parlec C40-75SF630-9 | 3/4" Hole Diameter x 6.300" Projection CAT40 1.300" Nose Diameter 25,000 RPM Shrink Fit Tool Holder & Adapter

About This Item

Features

• Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
• Critical dimensions match popular industry standards.
• Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
• Extreme concentricity, 3 Microns.
• Balanced up to 25,000 rpm.

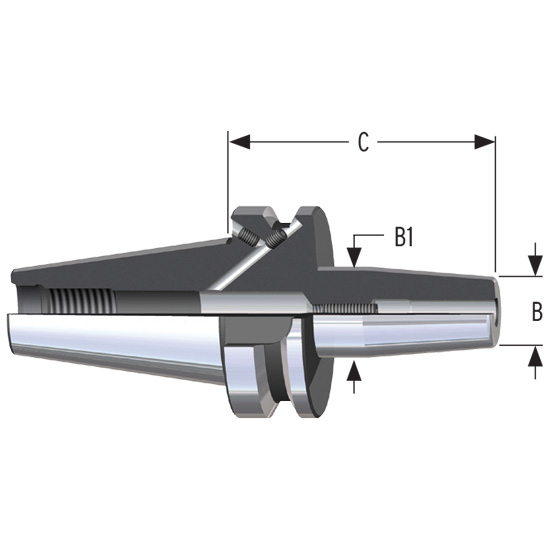

Product Specifications

Size (Hole Diameter)	3/4"
B (Nose Diameter)	1.3"
B1	1.65"
C (Projection)	6.30"
Style	2
Taper Size	CAT40
Coolant Through (Yes/No)	No
Weight (lbs)	0.01
