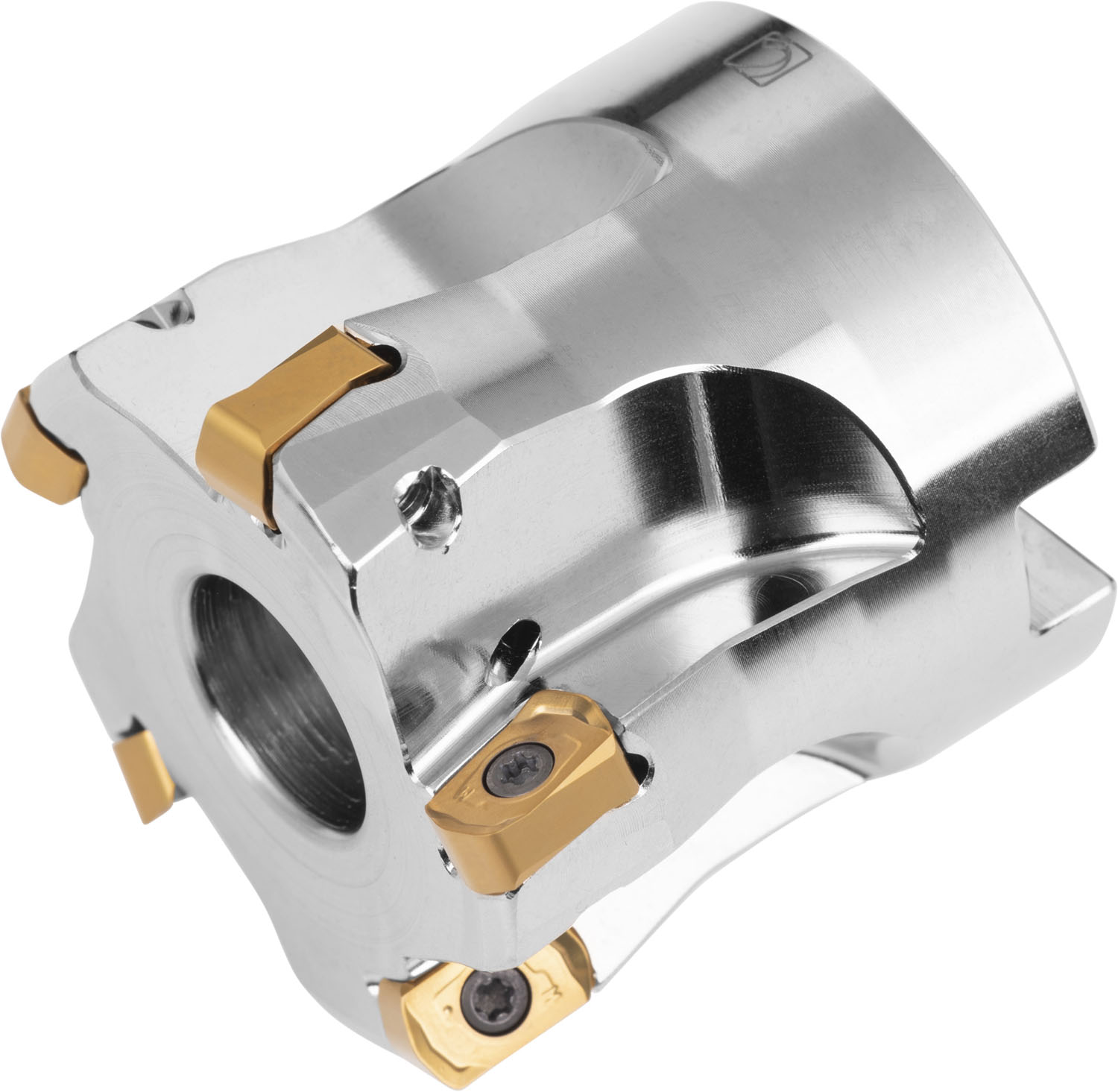

High feed cutter with double negative geometry which utilises 5 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 1.50'' with 20° approach angle and .50'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant and differential pitch for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039''.
Product Specifications
| EDP Number | 7464859 |
| Peripheral Effective Cutting Edge Count | 5 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 20100 |
| Connection Diameter (mm) | 12.7 mm |
| Connection Diameter (Inch) | 0.5" |
| Counterbore Diameter Connection Bore (Inch) | 0.433" |
| Keyway Width (Inch) | 0.258" |
| Keyway Depth (Inch) | 0.165" |
| Cutting Diameter (mm) | 31.5 mm |
| Cutting Diameter (Inch) | 1.24" |
| Max Cutting Diameter (Inch) | 1.5" |
| Functional Length (Inch) | 1.575" |
