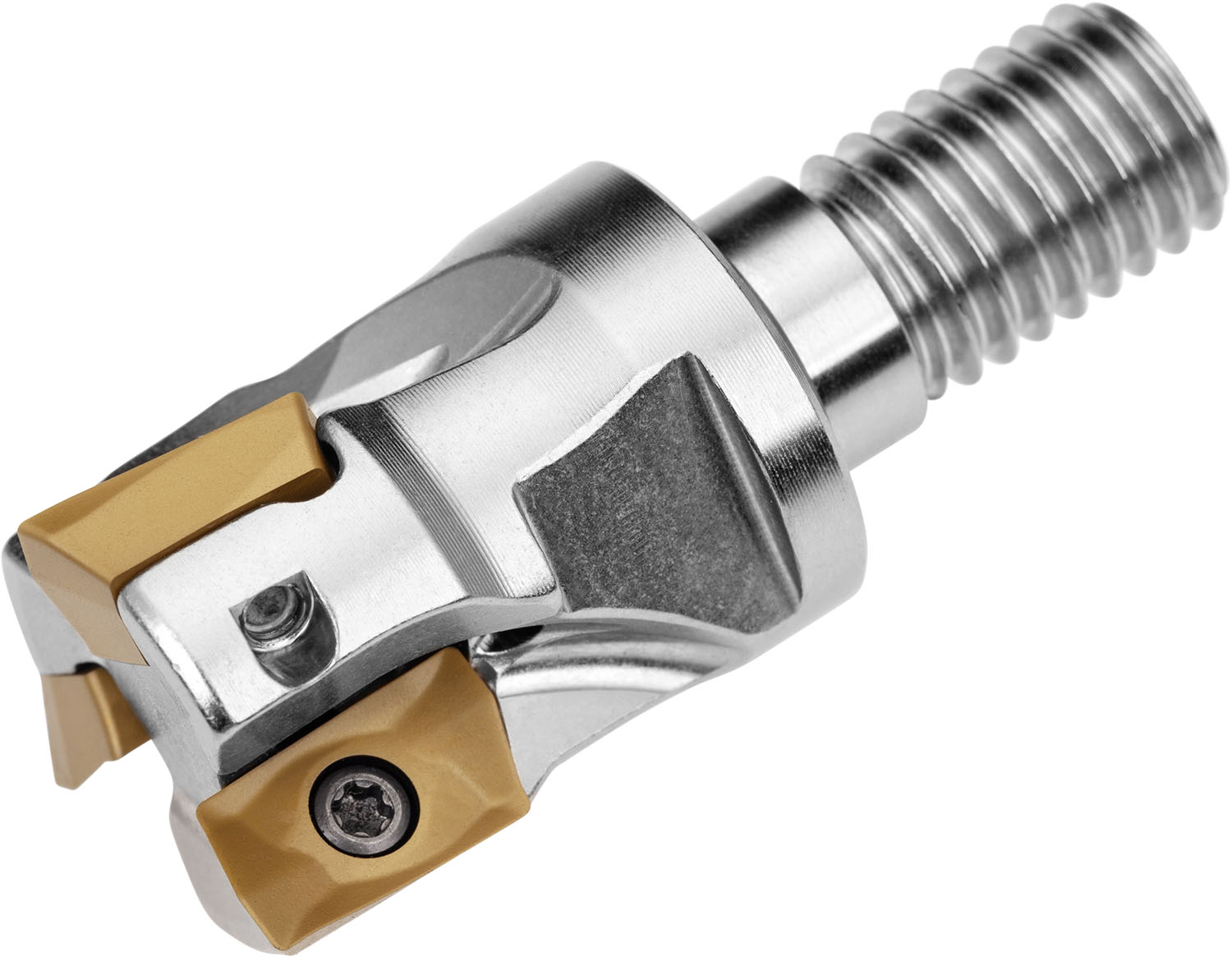

Shoulder mill with positve/negative geometry which utilises 6 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 1.500'' with 90° approach angle and M16 threaded shank for standard modular tool-holders, 1.693'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''.
Product Specifications
| EDP Number | 6790720 |
| Peripheral Effective Cutting Edge Count | 6 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 11 |
| Radial Rake Angle | -8.1 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Cutting Diameter (mm) | 38.1 mm |
| Cutting Diameter (Inch) | 1.5" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (Inch) | 1.693" |
| Thread Diameter Size | M16 |
