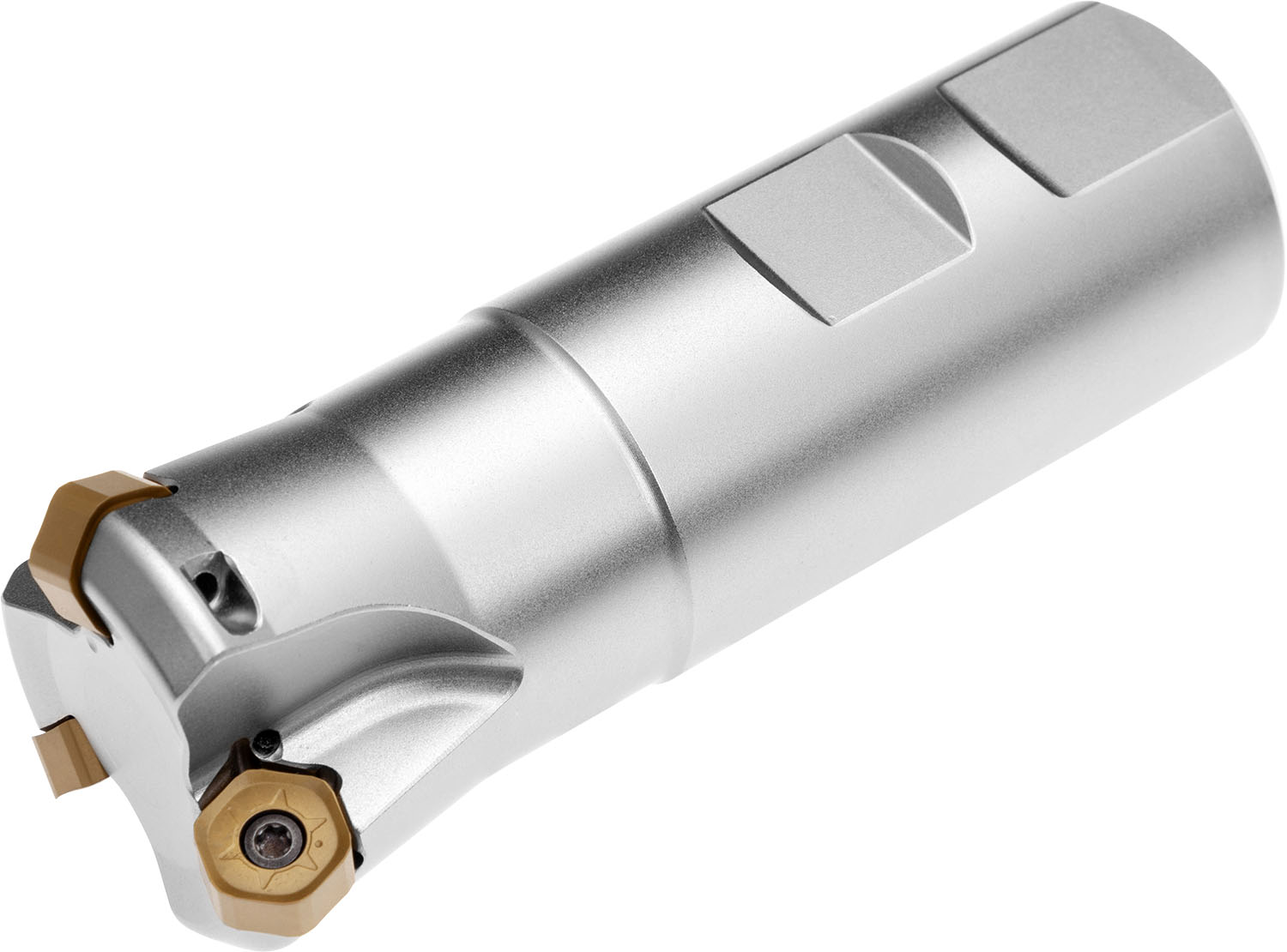

Face mill with double negative geometry which utilises 2 off HNGX 0604AN.. or XNGX 0604AN.. double-sided inserts, cutting diameter 25 to maximum 32.2 mm with 45° approach angle and 25 mm Weldon shank according to DIN 1835B, 42 mm functional and 99 mm overall length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 mm.
Product Specifications
| EDP Number | 6760283 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -7 |
| Max Rotational Speed | 17400 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 25 mm |
| Max Cutting Diameter (mm) | 32.2 mm |
| Cutting Diameter (Inch) | 0.984" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 42 mm |
