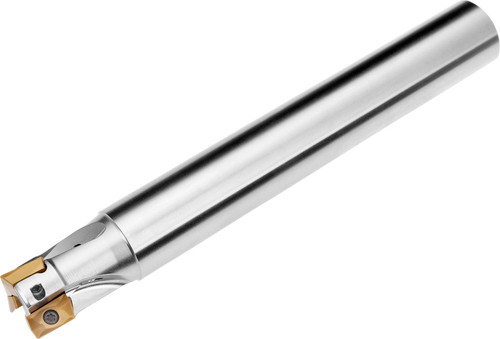

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 30 mm with 90° approach angle and 32 mm parallel shank according to DIN 1835A, 80 mm functional and 200 mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0 mm.
Product Specifications
| EDP Number | 7049094 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 7 |
| Radial Rake Angle | -9.3 |
| Max Rotational Speed | 22000 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Cutting Diameter (mm) | 30 mm |
| Cutting Diameter (Inch) | 1.181" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 80 mm |
