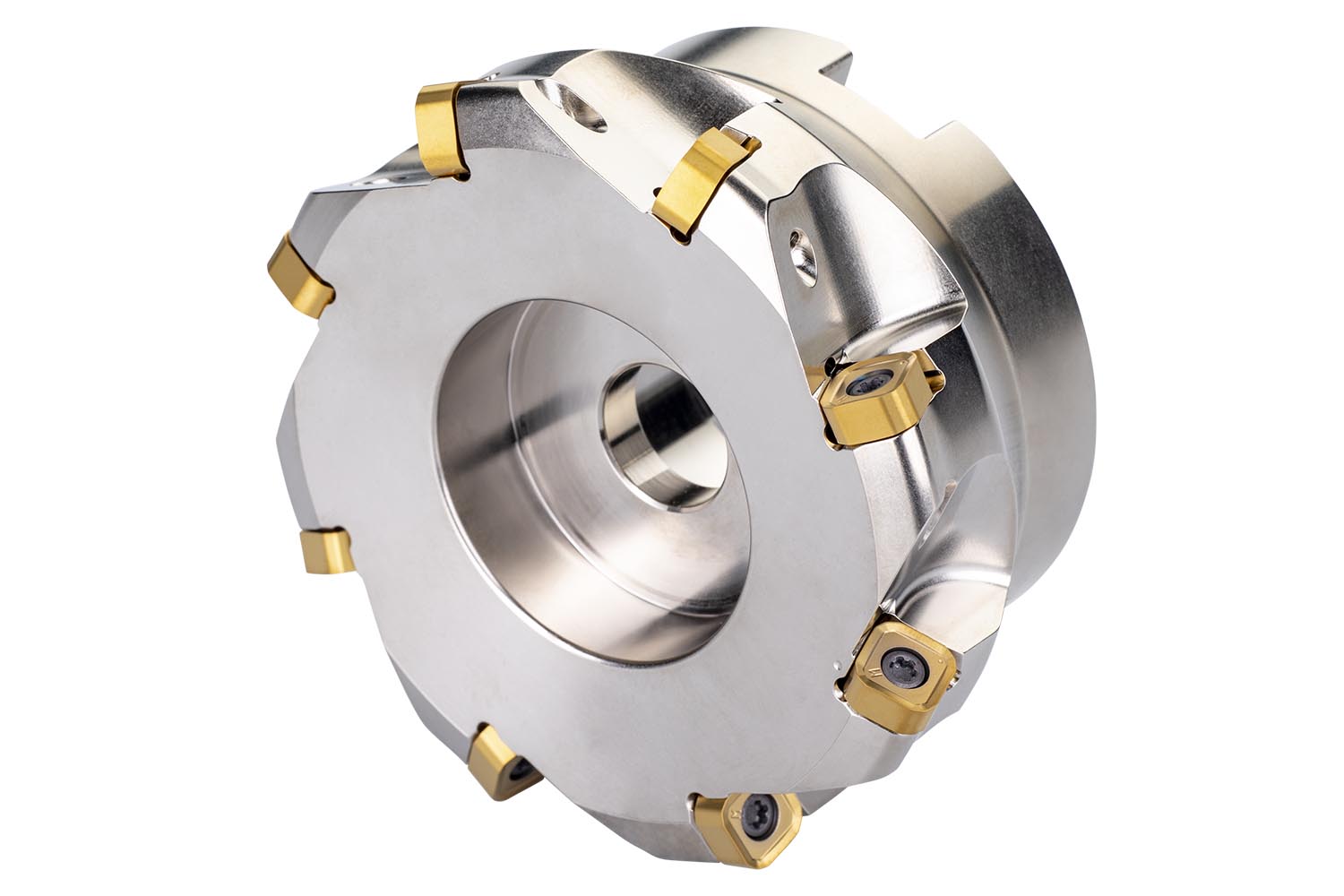

High feed cutter with double negative geometry which utilises 8 off SNGX 1104.. double-sided inserts, cutting diameter 4.000" with 18 Degree approach angle and 1.500" connection bore according to DIN 8030-C, 1.969" protrusion length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .067".
Product Specifications
| EDP Number | 7800658 |
| Peripheral Effective Cutting Edge Count | 8 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 18 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 9800 |
| Connection Diameter (mm) | 38.1 mm |
| Connection Diameter (Inch) | 1.5" |
| Counterbore Diameter Connection Bore (Inch) | 1.417" |
| Keyway Width (Inch) | 0.63" |
| Keyway Depth (Inch) | 0.382" |
| Cutting Diameter (mm) | 87.7 mm |
| Cutting Diameter (Inch) | 3.453" |
| Max Cutting Diameter (Inch) | 4" |
| Functional Length (Inch) | 1.969" |
| Country of origin | Czech Republic |
