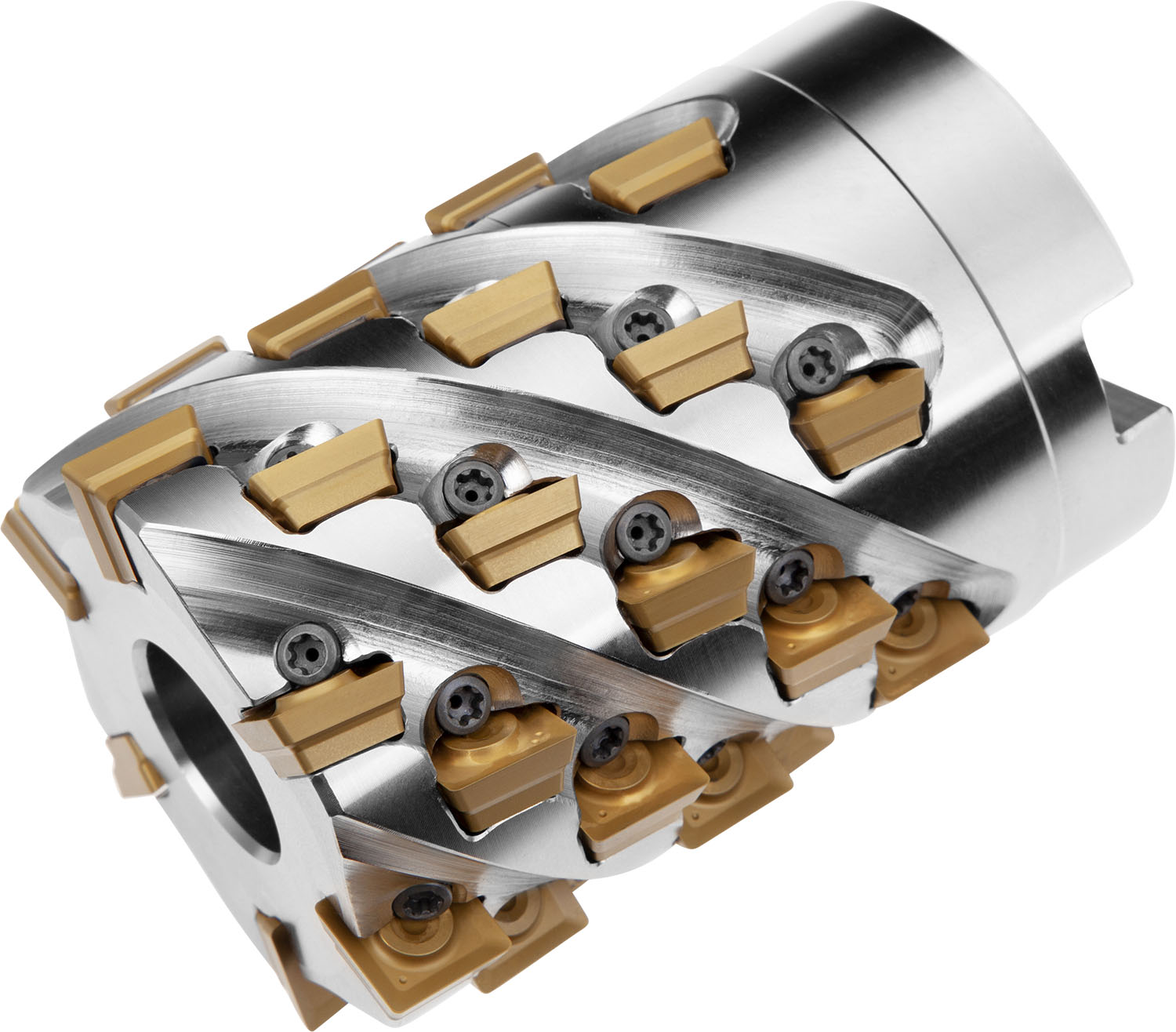

Pramet 6761743 | 2.480" Diameter x 90.00mm Length Indexable Square-Shoulder End Mill

$1,855.00 $1,484.00
(You save $371.00)
Brand:
Pramet
Cutting Diameter (Decimal Inch):
2.4800"
Cutting Diameter (mm):
63.00mm
Shank Diameter (Decimal Inch):
1.0630"
Shank Diameter (mm):
27.00mm
Through Coolant:
Yes
interval quantity:
1
SKU:
23145922
UPC:
Weight:
4.15 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Shoulder mill with extended flute with positve/negative geometry which utilises 36 off SDGX 12 or SDMX 12 single-sided inserts, cutting diameter 63 mm with 90 Degree approach angle and 27 mm connection bore according to DIN 8030, 90 mm protrusion length for deep shoulder milling and deep slot milling with a maximum depth of cut of 65,7 mm.

Product Specifications
EDP Number6761743
Peripheral Effective Cutting Edge Count36
Insert Index Count36
Maximum Depth of Cut (mm)65.7 mm
Flute Count6
Coolant Supply Property1
Axial Rake Angle8
Radial Rake Angle-5
Max Rotational Speed2500
Connection Diameter (mm)27 mm
Connection Diameter (Inch)1.063"
Counterbore Diameter Connection Bore (mm)22 mm
Cutting Diameter (mm)63 mm
Cutting Diameter (Inch)2.48"
Functional Length (mm)90 mm
Country of originCzech Republic
