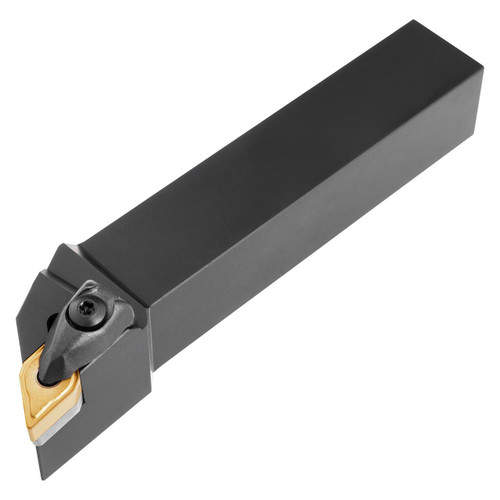

Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation DN.. 43. ), right hand 93° side cutting with off-set shank, 3/4'' tool height x 3/4'' width x 4.1/2'' long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6788570 |
| Functional Height (Inch) | 0.75" |
| Functional Width (Inch) | 1" |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Functional Length (Inch) | 4.5" |
| Head Length (Inch) | 1.45" |
| Clamping Type Code | System D |
| Hand (Cutting Direction) | Right |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
3/4"
Shank Width (Decimal Inch):
0.7500"
Shank Width (mm):
19.05mm
