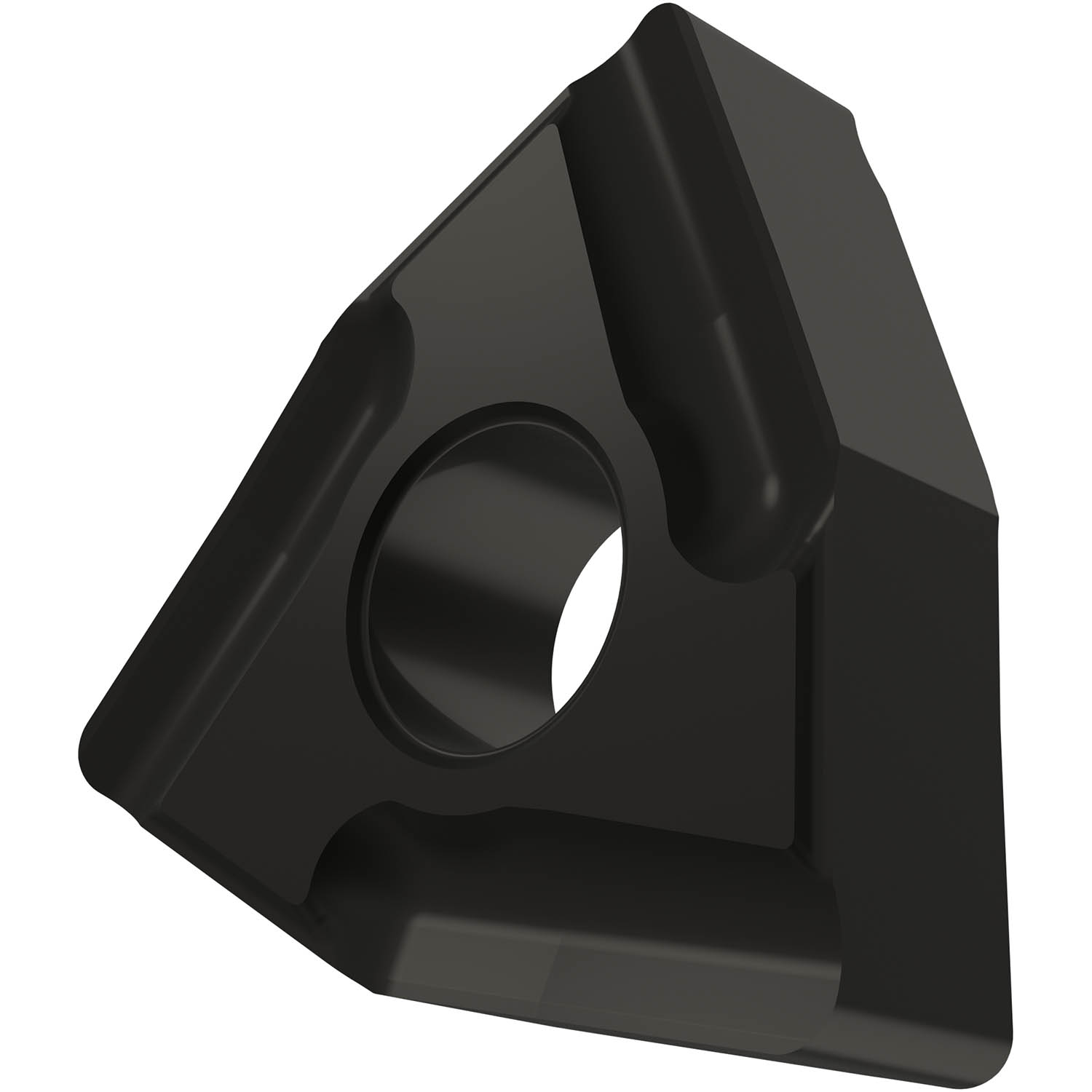

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SI with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M10-M25 and S10-S25, for medium to heavy machining of stainless-steels and super-alloys with a left handed turning tool.
Product Specifications
| EDP Number | 7156472 |
| Max Depth of Cut (mm) | 5 mm |
| Max Depth of cut (Inch) | 0.197" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 5.16 mm |
| Fixing Hole Diameter (Inch) | 0.203" |
| Cutting Edge Length (mm) | 8.7 mm |
| Cutting Edge Length (Inch) | 0.343" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating Process | MT-CVD |
| Coating | T7325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.8 mm |
| Min Depth of Cut (Inch) | 0.031" |
| Chipbreaker Manufacturer's Designation | SI |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
