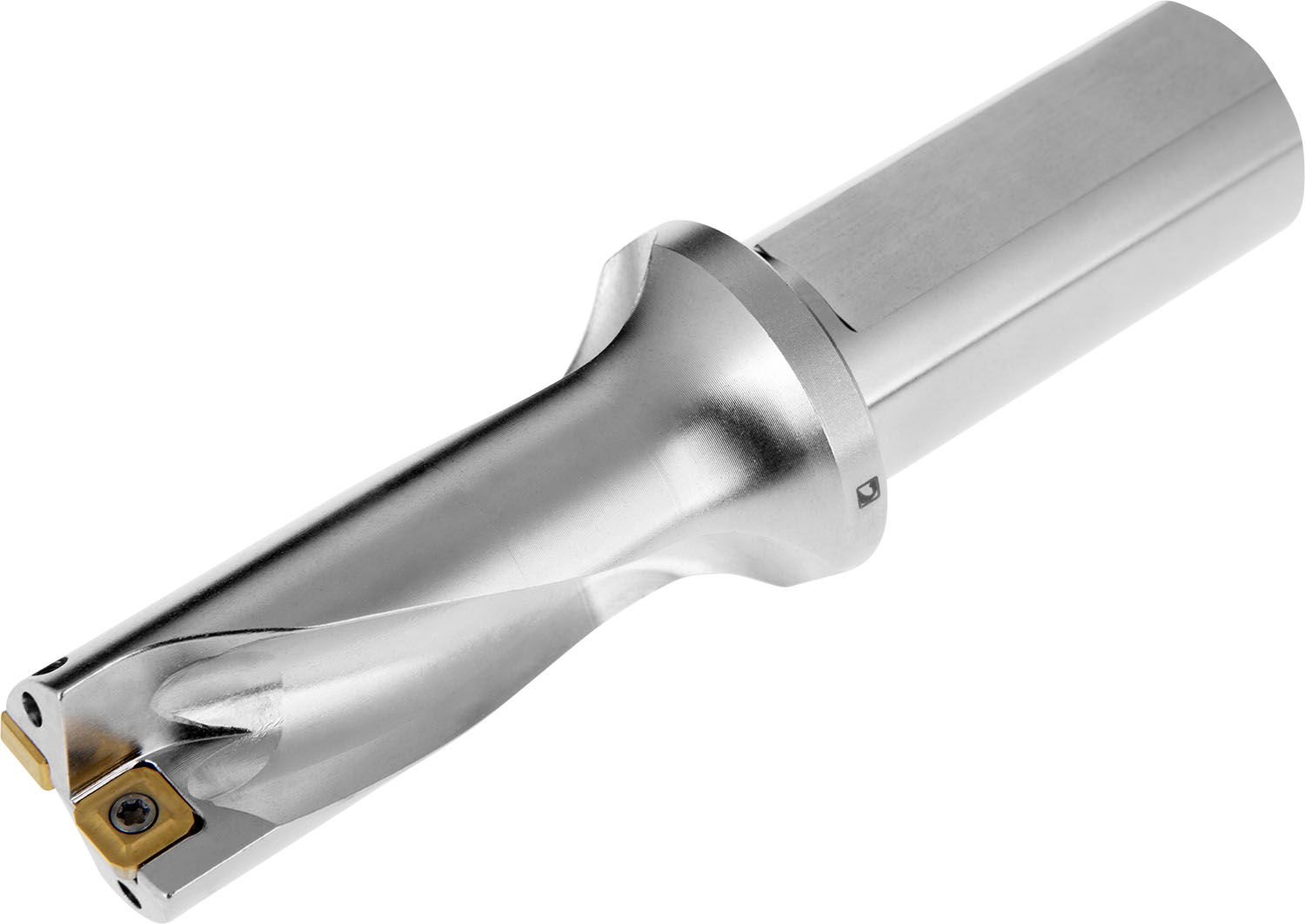

Indexable insert drill which utilises an XPET 0703.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 0.922'', with a 1.000'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D.
Product Specifications
| EDP Number | 6801102 |
| Max Depth of cut (Inch) | 1.844" |
| Min Adjustment Limit (Inch) | 0.008" |
| 0.019" |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 23.4 mm |
| Cutting Diameter (Inch) | 0.922" |
| Overall Length (mm) | 129 mm |
| Overall Length (Inch) | 5.071" |
| Usable Length (Inch) | 2.106" |
| Protruding Length (Inch) | 2.827" |
| Shank Length (Inch) | 2.244" |
| Country of origin | Czech Republic |
