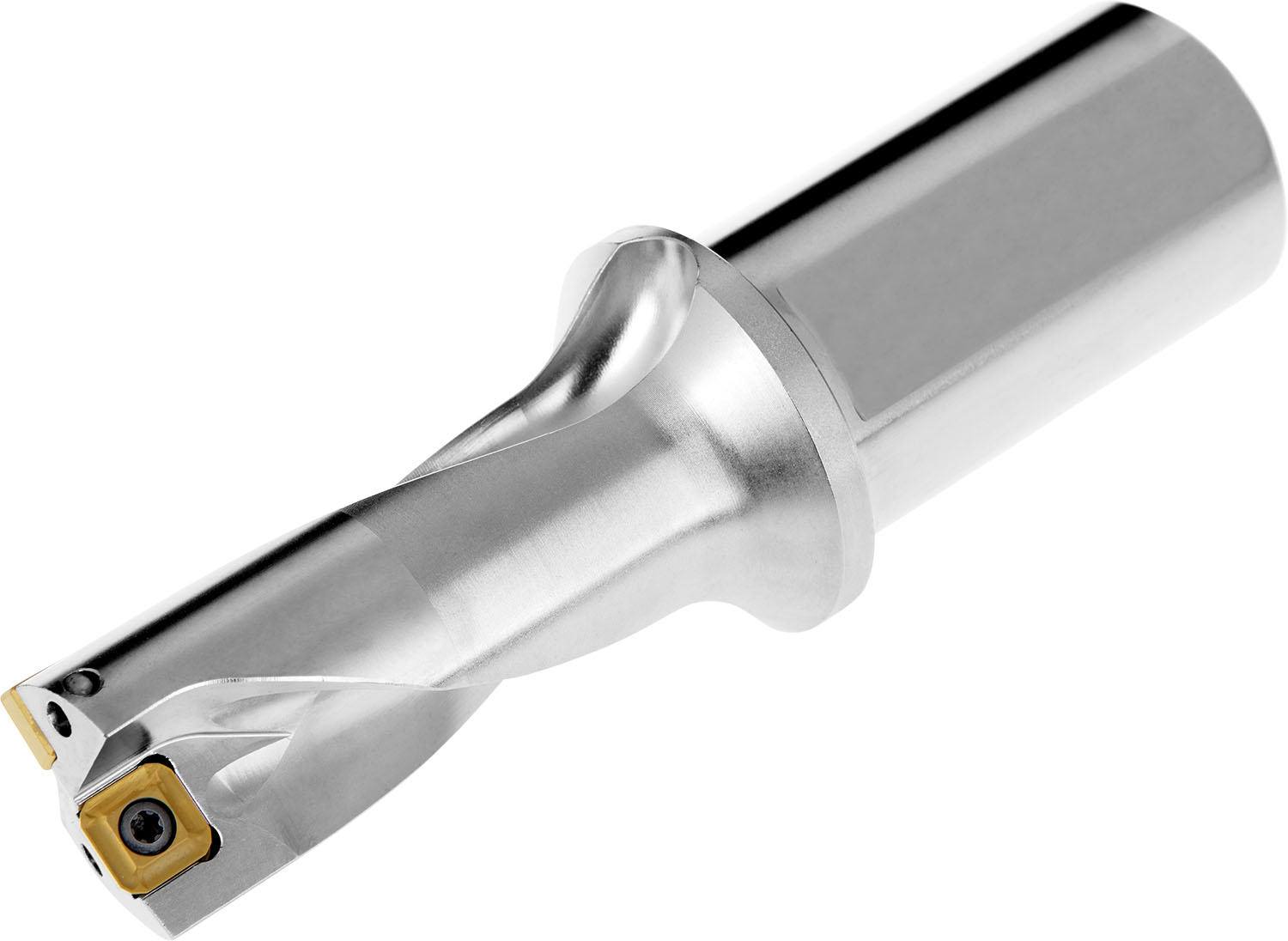

Indexable insert drill which utilises an XPET 11T3.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 34mm in combination with EP324058, suited for a radial adjustment of -0.25 to +0.50mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D.
Product Specifications
| EDP Number | 6820782 |
| Max Depth of Cut (mm) | 68 mm |
| Coolant Supply Property | 1 |
| Min Adjustment Limit (mm) | 0.25 mm |
| Max Adjustment Limit (mm) | 0.5 mm |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 34 mm |
| Cutting Diameter (Inch) | 1.339" |
| Overall Length (mm) | 163 mm |
| Overall Length (Inch) | 6.417" |
| Usable Length (mm) | 75 mm |
| Protruding Length (mm) | 103 mm |
| Shank Length (mm) | 60 mm |
| Cutting Edge Count | 1 |
