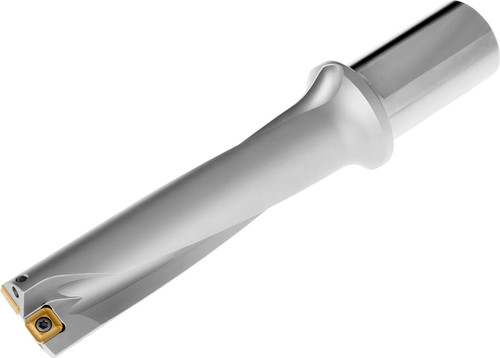

Pramet 804D-1250-500-S150 | 1.25" Diameter x 5" Max Depth of Cut Indexable Insert Drill

$568.00 $478.48
(You save $89.52)
Brand:
Pramet
interval quantity:
1
SKU:
23144992
UPC:
Weight:
2.54 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Indexable insert drill which utilises an XPET 11T3.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 1.250'', with a 1.500'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 4 x D.

Product Specifications
EDP Number6801172
Max Depth of cut (Inch)5"
Min Adjustment Limit (Inch)0.006"
0.02"
Connection Diameter (mm)38.1 mm
Connection Diameter (Inch)1.5"
Connection Diameter Tolerance Machine Sideh6
Cutting Diameter (mm)31.8 mm
Cutting Diameter (Inch)1.25"
Overall Length (mm)219 mm
Overall Length (Inch)8.622"
Usable Length (Inch)5.169"
Protruding Length (Inch)5.984"
Shank Length (Inch)2.638"
Country of originCzech Republic

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
