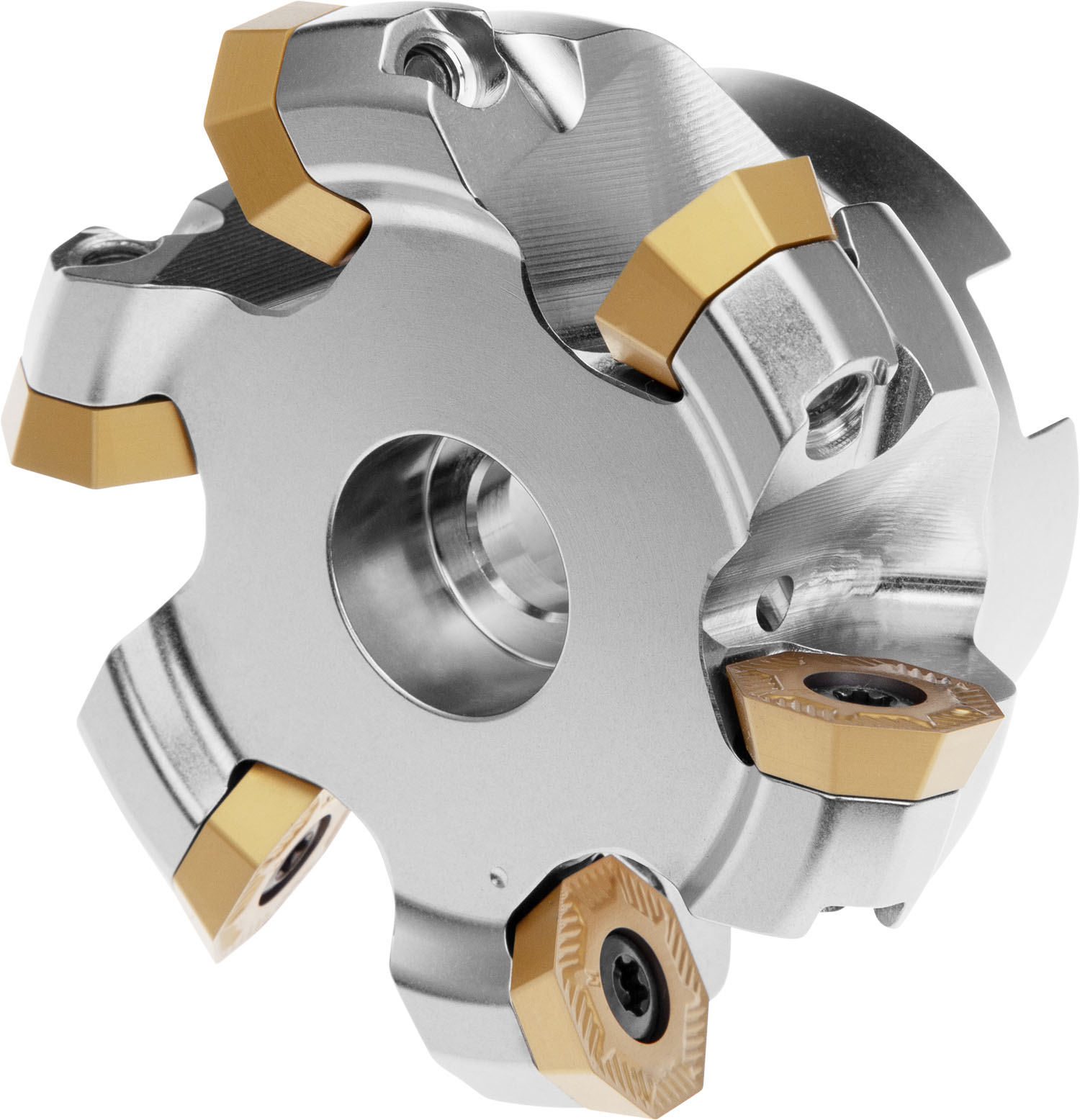

Face mill with double positive geometry which utilises 6 off OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 80 to maximum 90.2 mm with 43° approach angle and 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9) mm.
Product Specifications
| EDP Number | 6922503 |
| Peripheral Effective Cutting Edge Count | 6 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 6 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | 6 |
| Max Rotational Speed | 8500 |
| Connection Diameter (mm) | 27 mm |
| Connection Diameter (Inch) | 1.063" |
| Counterbore Diameter Connection Bore (mm) | 38 mm |
| Keyway Width (mm) | 12.4 mm |
| Keyway Depth (mm) | 7 mm |
| Cutting Diameter (mm) | 80 mm |
| Max Cutting Diameter (mm) | 90.2 mm |
| Cutting Diameter (Inch) | 3.15" |
| Functional Length (mm) | 50 mm |
