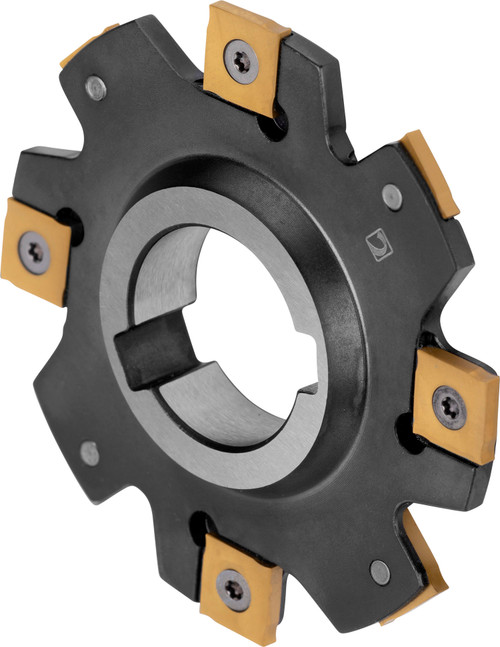

Disc mill with positve/negative geometry which utilises 8 off SNHQ 1203.. double-sided inserts, cutting diameter 80 mm with 90° approach angle and 27 mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 6 mm.
Product Specifications
| EDP Number | 6758372 |
| Peripheral Effective Cutting Edge Count | 8 |
| Insert Index Count | 8 |
| Cutting width (mm) | 6 mm |
| Max Cutting Depth (mm) | 16 mm |
| Axial Rake Angle | -0.5 |
| Radial Rake Angle | 2.5 |
| Max Rotational Speed | 8400 |
| Connection Bore Diameter (mm) | 27 mm |
| Hub Diameter (mm) | 42 mm |
| Cutting Diameter (mm) | 80 mm |
| Cutting Diameter (Inch) | 3.15" |
| Number of Peripheral Edges in The Tool | 8 |
