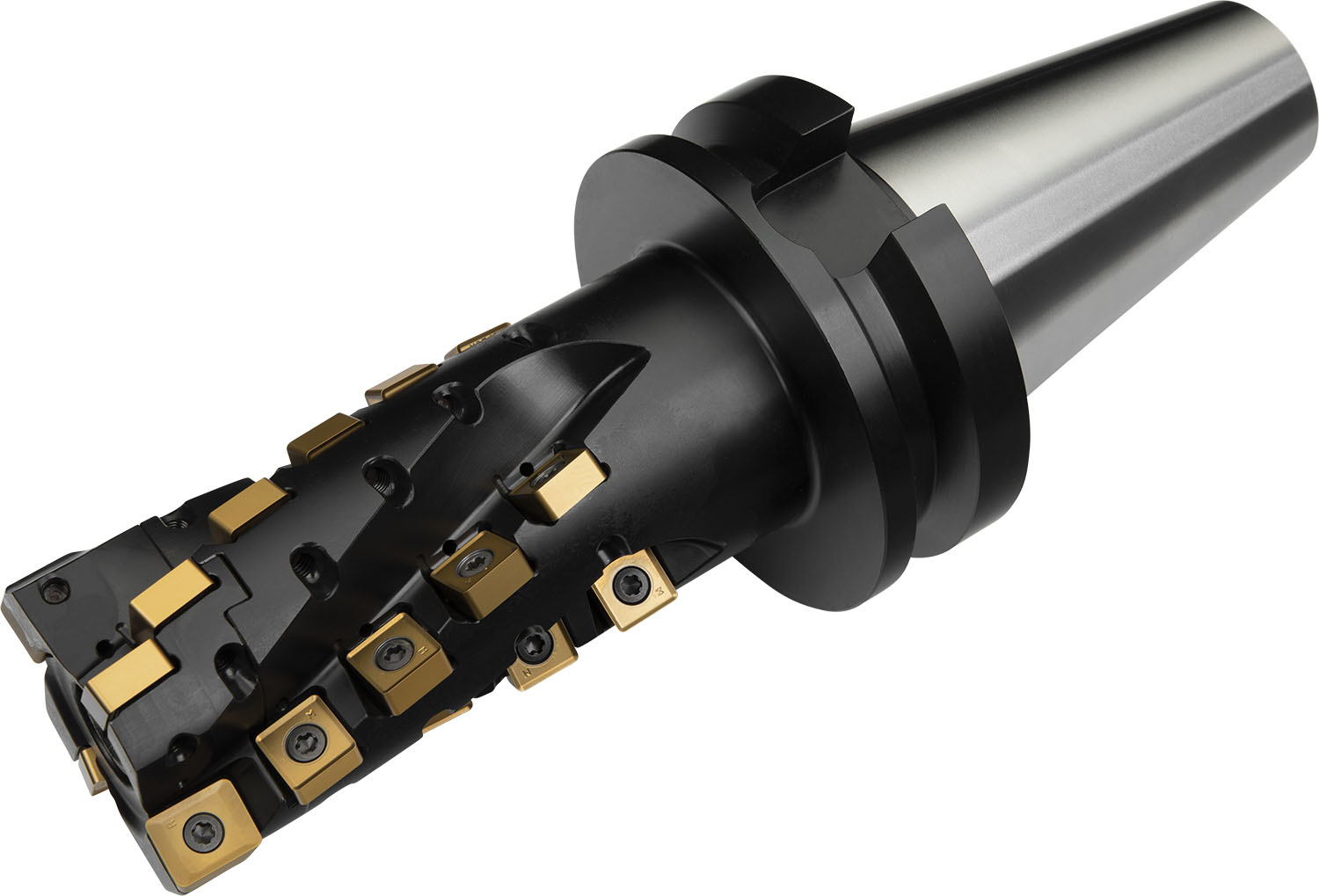

Shoulder mill with extended flute with double negative geometry which utilises 2 off LNET 1606.. and 26 SN.. 1305.. double-sided inserts, cutting diameter 80 mm with 90 Degree approach angle and BT 50 taper shank according to JIS B 6339, 134 mm functional and 312 mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 134 mm.
Product Specifications
| EDP Number | 6760426 |
| Insert Index Count | 28 |
| Maximum Depth of Cut (mm) | 134 mm |
| Flute Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | -9 |
| Max Rotational Speed | 7500 |
| Connection Size Code Machine Side | 50 |
| Cutting Diameter (mm) | 80 mm |
| Cutting Diameter (Inch) | 3.15" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 210 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
