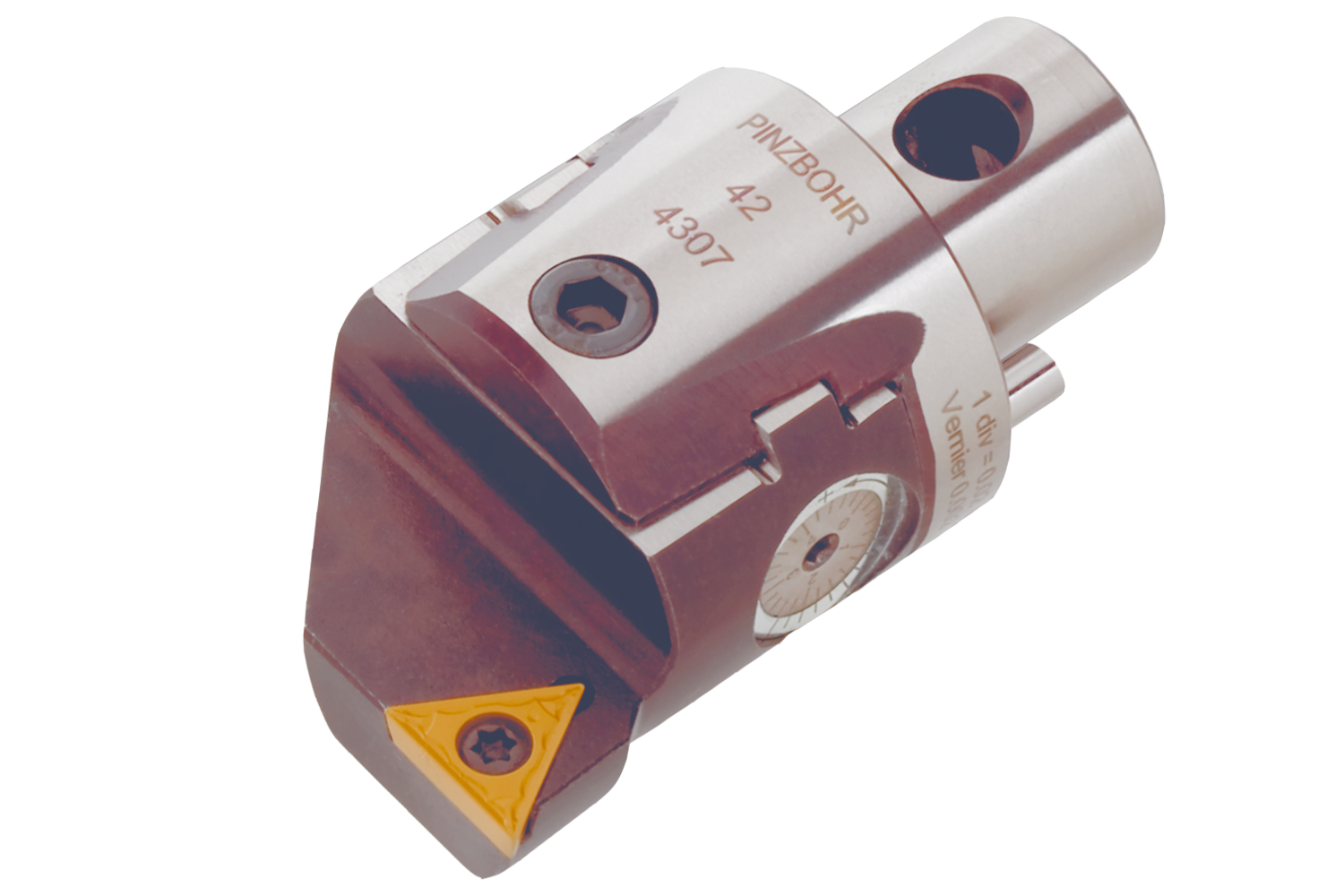

Integral pocket type boring head size 42 with 90° approach angle and 2 micron adjusting accuracy for finishing within a diamerter range of 49 to 65mm, to hold a TC.. 16T3.. insert for longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760649 |
| Connection Size Code Machine Side | 42 |
| Connection Diameter (mm) | 24 mm |
| Connection Diameter (Inch) | 0.945" |
| Min Cutting Diameter (mm) | 49 mm |
| Max Cutting diameter (mm) | 65 mm |
| Functional Length (mm) | 56 mm |
| Cutting Edge Count | 1 |
| Max Body Diameter (mm) | 42 mm |
