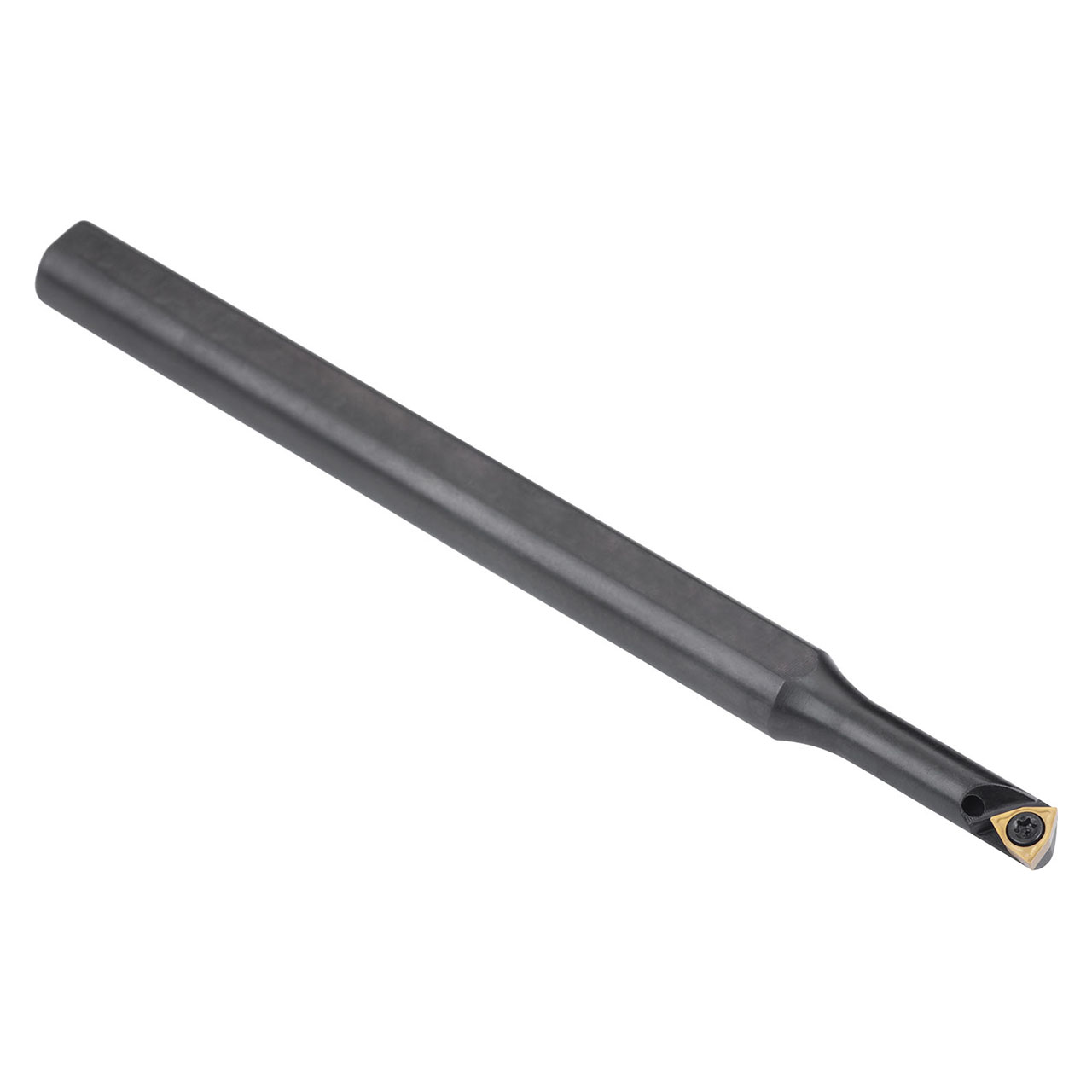

Screw clamp boring bar for holding a 80 Degree trigon positive insert with an inscribed circle diameter of 3.97 mm, 1.59 mm thick (ISO designation WC.. 0201.. ), left hand 93 Degree end cutting with off-set shank, steel with coolant hole, 6 mm diameter x 100 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760582 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -12 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 8 mm |
| Connection Diameter (Inch) | 0.315" |
| Minimum Bore Diameter (mm) | |
| Body Diameter (mm) | 6 mm |
| Body Diameter (Inch) | 0.236" |
| Functional Length (mm) | 100 mm |
| Head Length (mm) | 24 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
interval quantity:
1
