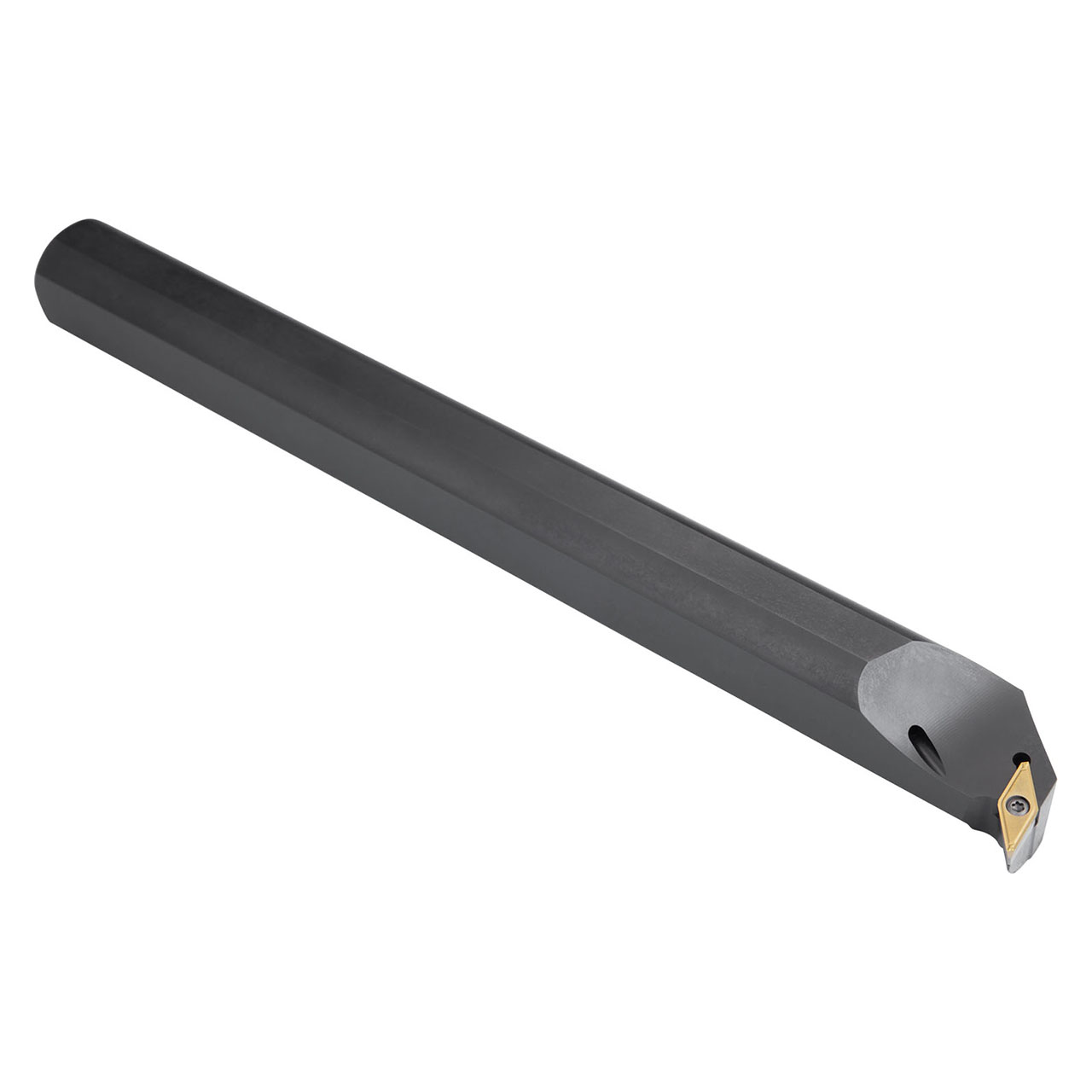

Screw clamp boring bar for holding a 35 Degree rhombus positive insert with an inscribed circle diameter of 6.35 mm, 3.18 mm thick (ISO designation VB.. 1103.. ), left hand 93 Degree end cutting with off-set shank, steel with coolant hole, 16 mm diameter x 200 mm long for single and multi-directional copy boring and back chamfering.
Product Specifications
| EDP Number | 6760323 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Inclination Angle | -5 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Shank Height (mm) | 14.5 mm |
| Shank Width (mm) | 15 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 200 mm |
| Hand (Cutting Direction) | Left |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
