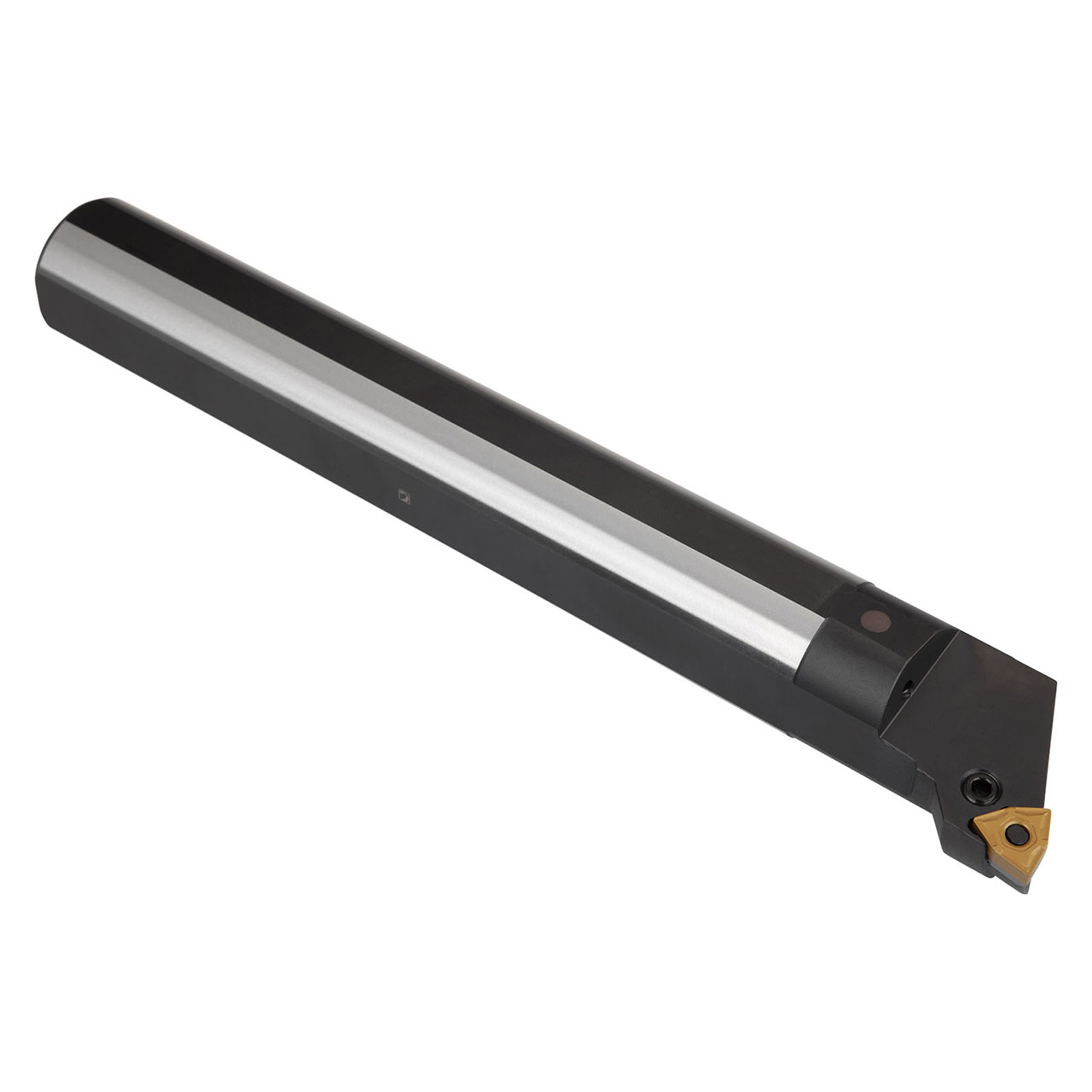

Lever lock boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation WN.. 0604.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 20 mm diameter x 180 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6761035 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -13.5 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 20 mm |
| Connection Diameter (Inch) | 0.787" |
| Shank Height (mm) | 18 mm |
| Shank Width (mm) | 18 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 180 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
45/64"
Shank Width (Decimal Inch):
0.7100"
Shank Width (mm):
18mm
Shank Height (Inch):
45/64"
Shank Height (Decimal Inch):
0.7100"
Shank Height (mm):
18mm
