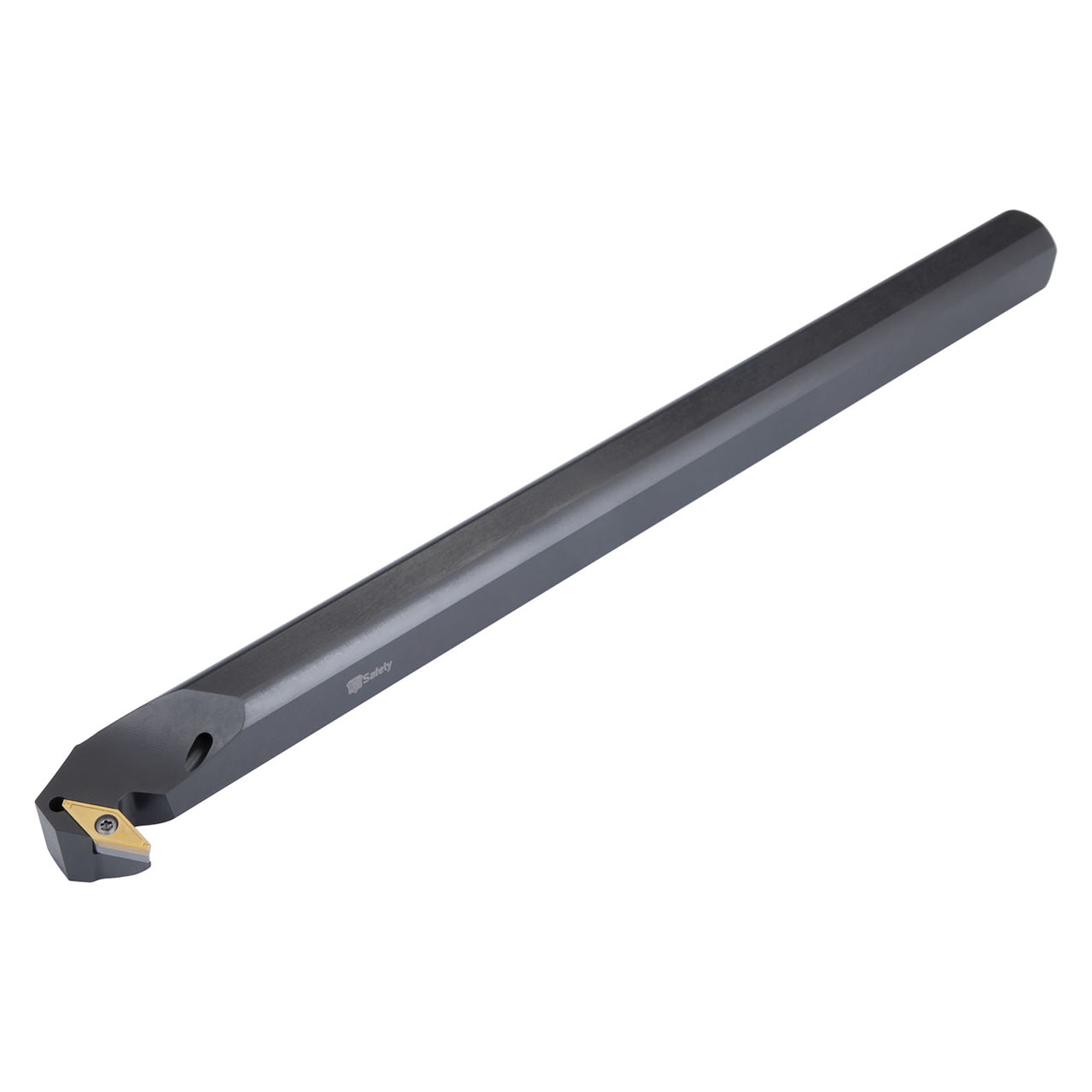

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94 mm, 3.18 mm thick (ISO designation VC.. 1303.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 25 mm diameter x 300 mm long for back chamfering.
Product Specifications
| EDP Number | 6760906 |
| Functional Height (mm) | 12 mm |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Orthogonal Rake Angle | -2 |
| Inclination Angle | -2 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Shank Height (mm) | 24 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 300 mm |
| A Dimension on LF (mm) | 18 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-2
Shank Height (Inch):
15/16"
Shank Height (Decimal Inch):
0.9400"
Shank Height (mm):
24mm
