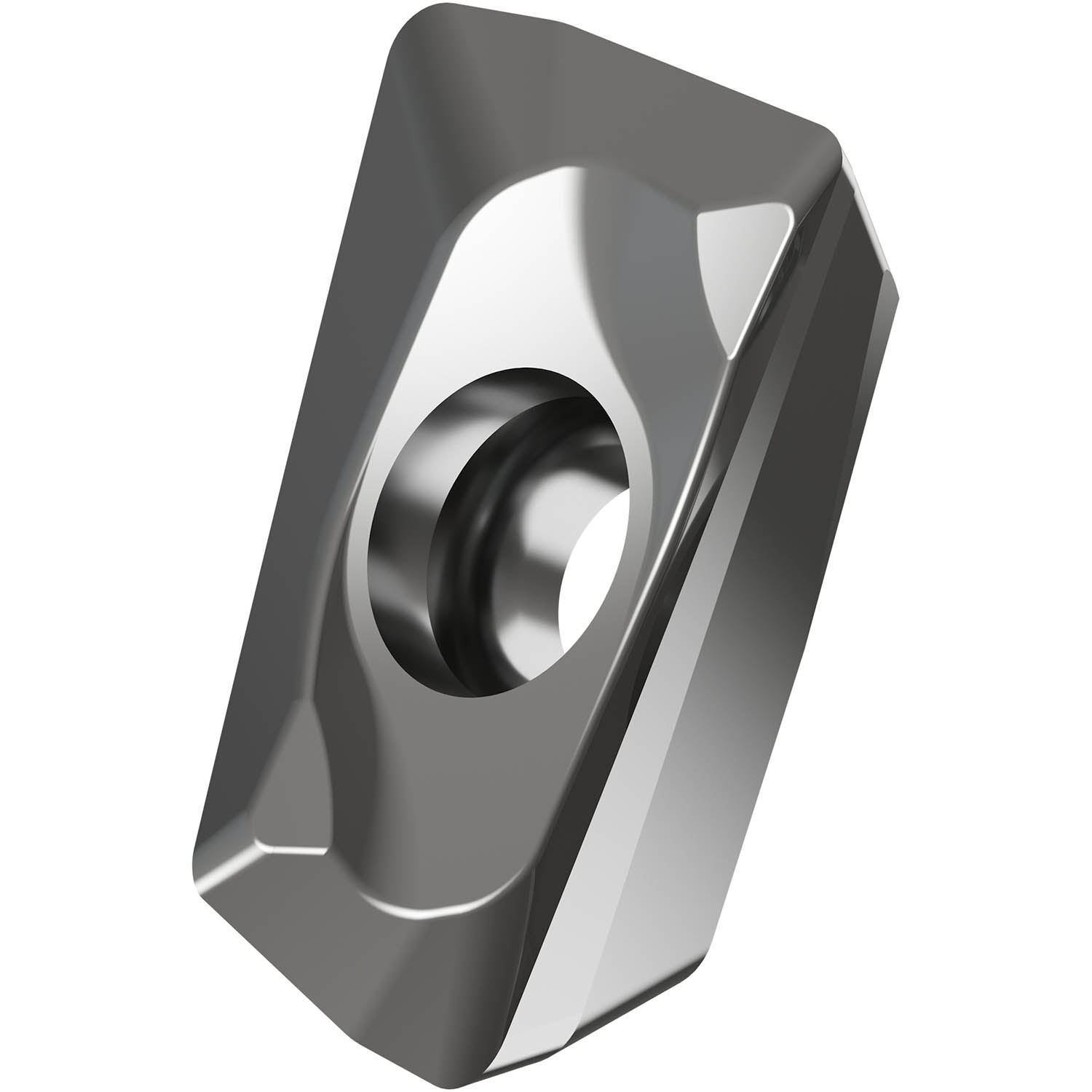

Pramet ADEX 11T308FR-FA:M0315 | 0.114" Diameter x 0.154" Thickness Milling Insert

$10.53
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
10
SKU:
23151012
Weight:
0.08 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Single-sided milling insert ADEX 11T3, 85° parallelogram for a maximum depth of cut of 9.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, M0315 PVD coated fine grained WC-Co carbide within ISO-grade range N05-N25 for machining of non-ferrous metal with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E.

Product Specifications
EDP Number6800783
Maximum Depth of Cut (mm)9 mm
Max Depth of Cut (Inch)0.354"
Coating Property1
Fixing Hole Diameter (mm)2.9 mm
Fixing Hole Diameter (Inch)0.114"
Cutting Edge Length (mm)9.7 mm
Cutting Edge Length (Inch)0.382"
Insert Width (mm)6.45 mm
Insert Width (Inch)0.254"
Insert Thickness (mm)3.91 mm
Insert Thickness (Inch)0.154"
Corner Radius (mm)0.8 mm
Corner Radius (Inch)0.031"
Coating ProcessPVD
CoatingM0315
Surface ColorSilver
Min Depth of Cut (mm)0.2 mm
Min Depth of Cut (Inch)0.008"
