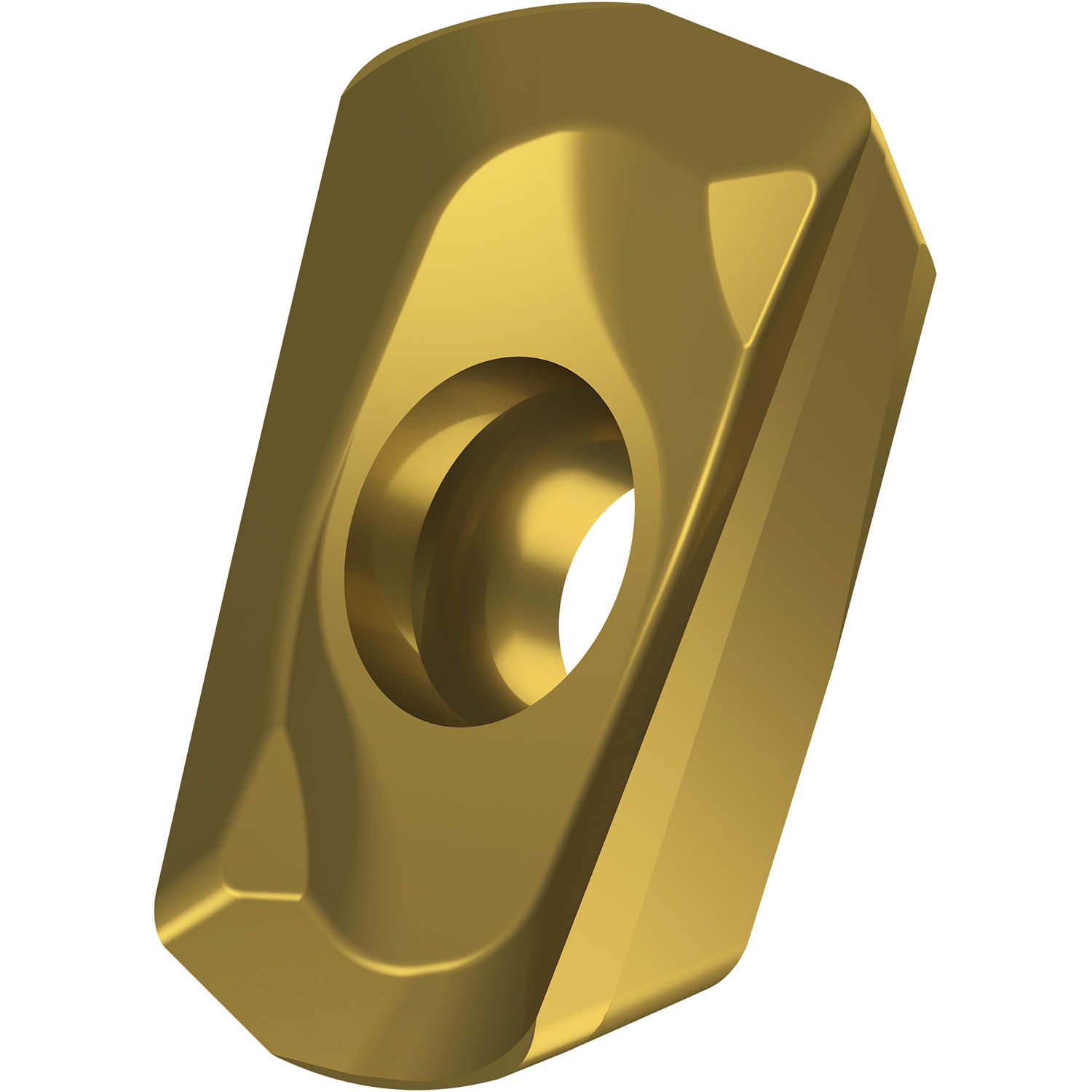

Single-sided milling insert ADEX 11T3, 85° parallelogram and high-feed design for a maximum depth of cut of 0.6 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills SAD11E.
Product Specifications
| EDP Number | 7447737 |
| Maximum Depth of Cut (mm) | 0.6 mm |
| Max Depth of Cut (Inch) | 0.024" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.9 mm |
| Fixing Hole Diameter (Inch) | 0.114" |
| Cutting Edge Length (mm) | 10.67 mm |
| Cutting Edge Length (Inch) | 0.42" |
| Insert Width (mm) | 6.45 mm |
| Insert Width (Inch) | 0.254" |
| Insert Thickness (mm) | 3.82 mm |
| Insert Thickness (Inch) | 0.15" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.1 mm |
| Min Depth of Cut (Inch) | 0.004" |
