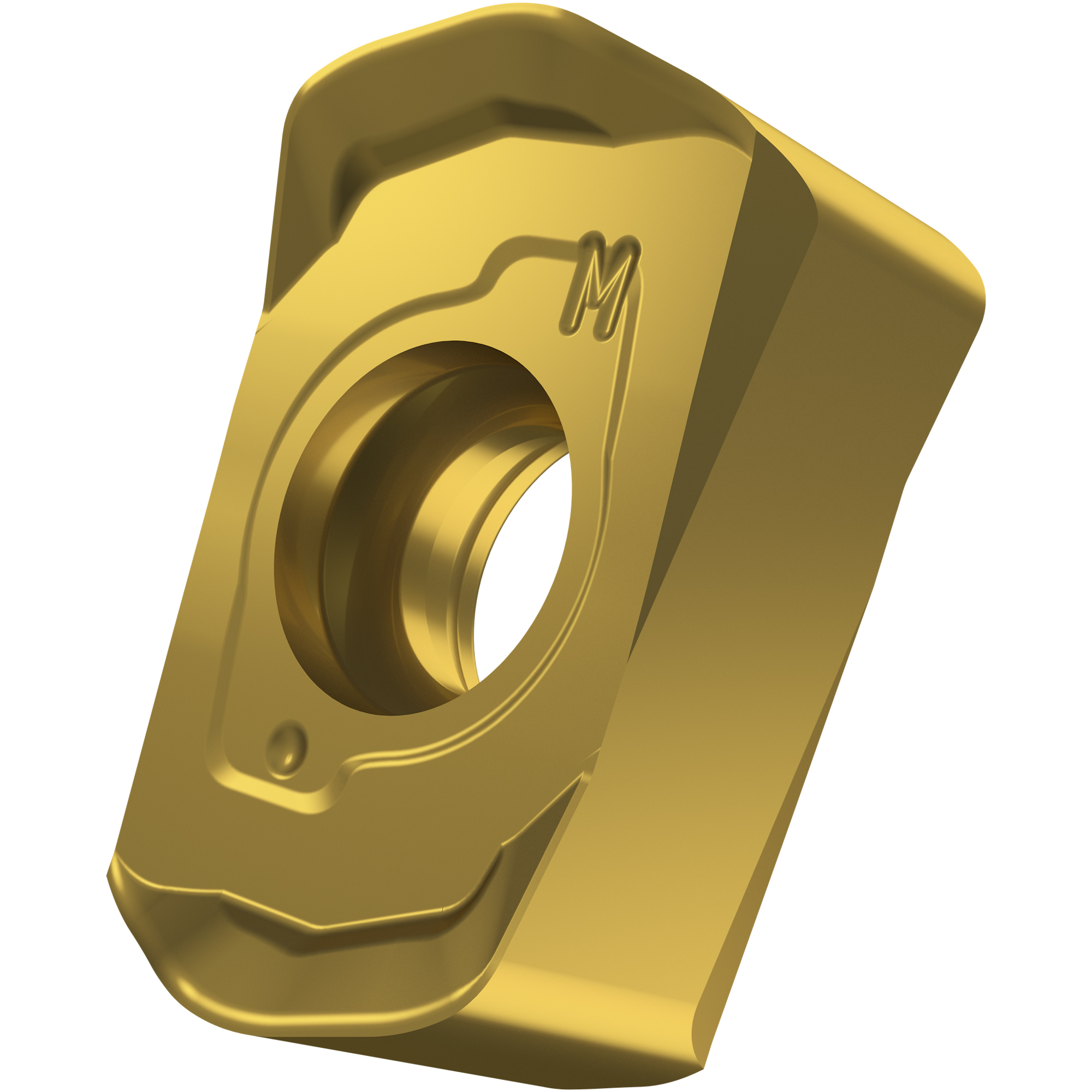

Double-sided milling insert BNGX 10T3, 82° parallelogram and high-feed design for a maximum depth of cut of 1.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with high feed cutters SBN10.
Product Specifications
| EDP Number | 7451993 |
| Maximum Depth of Cut (mm) | 1 mm |
| Max Depth of Cut (Inch) | 0.039" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.76 mm |
| Fixing Hole Diameter (Inch) | 0.109" |
| Cutting Edge Length (mm) | 9.92 mm |
| Cutting Edge Length (Inch) | 0.391" |
| Insert Width (mm) | 5.8 mm |
| Insert Width (Inch) | 0.228" |
| Insert Thickness (mm) | 3.9 mm |
| Insert Thickness (Inch) | 0.154" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
