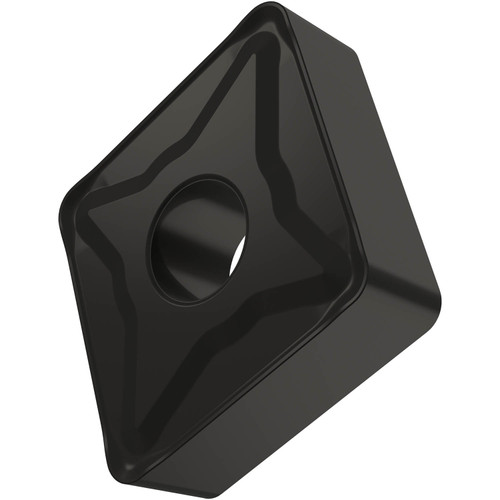

Single-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 25.4 mm, 9.52 mm thick, 2.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker OR with rounded cutting edges, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for medium to extra heavy machining of steels and stainless-steels.
Product Specifications
| EDP Number | 6752128 |
| Max Depth of Cut (mm) | 16 mm |
| Max Depth of cut (Inch) | 0.63" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 9.12 mm |
| Fixing Hole Diameter (Inch) | 0.359" |
| Cutting Edge Length (mm) | 25.8 mm |
| Cutting Edge Length (Inch) | 1.016" |
| Inscribed Circle Diameter (mm) | 25.4 mm |
| Inscribed Circle Diameter (Inch) | 1" |
| Insert Thickness (mm) | 9.525 mm |
| Insert Thickness (Inch) | 0.375" |
| Corner Radius (mm) | 2.4 mm |
| Corner Radius (Inch) | 0.094" |
| Coating Process | MT-CVD |
| Coating | 6630 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 4 mm |
| Min Depth of Cut (Inch) | 0.157" |
| Chipbreaker Manufacturer's Designation | OR |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Pramet
Length (Decimal Inch):
1.0160"
Length (mm):
25.80mm
Inscribed Circle (Decimal Inch):
1.0000"
Inscribed Circle (mm):
25.40mm
Thickness (Decimal Inch):
0.3750"
Thickness (mm):
9.53mm
Corner Radius (Decimal Inch):
0.0940"
Corner Radius (mm):
2.40mm
Ships:
From Partner Facility
interval quantity:
5
