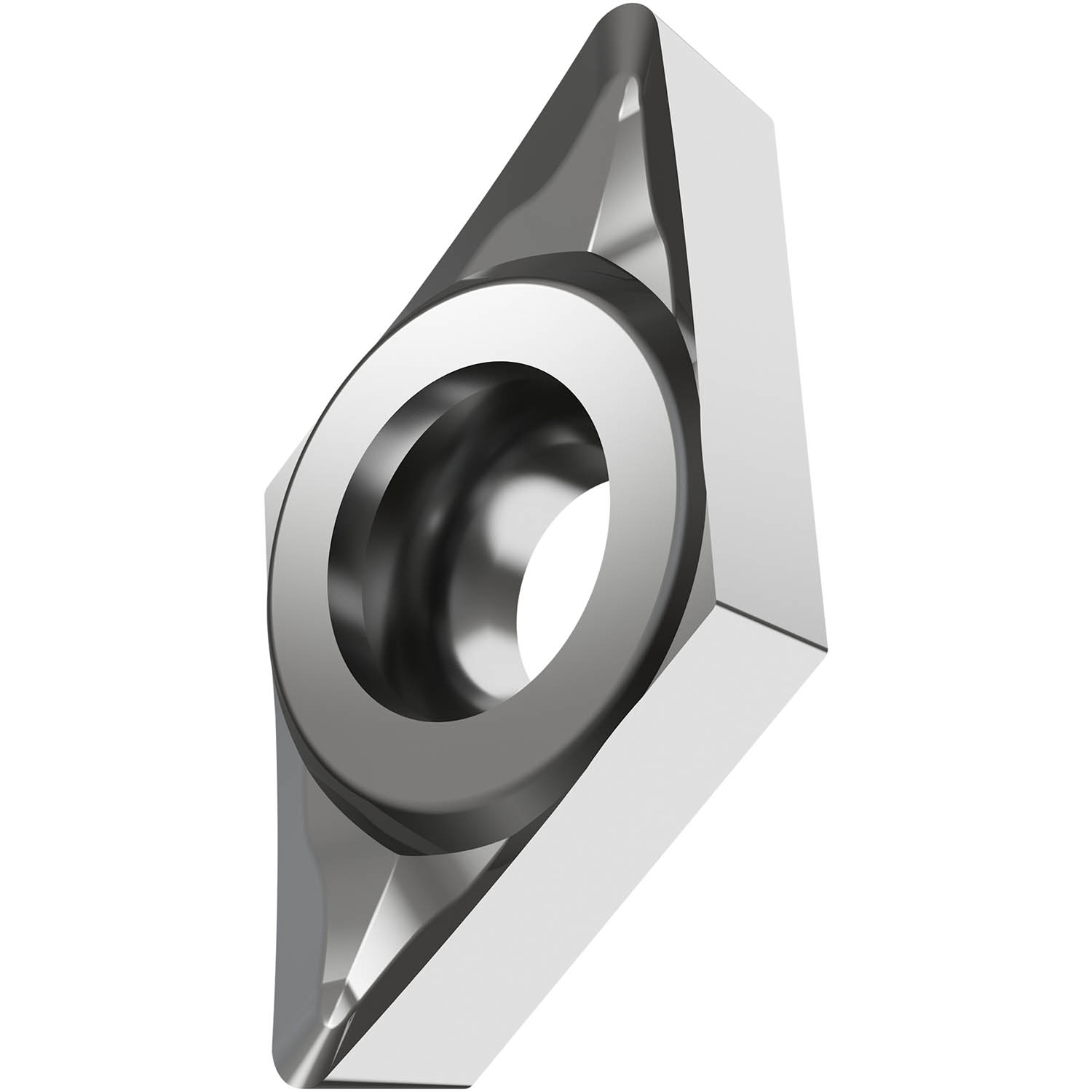

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 6.35 mm, 2.38 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker AL with sharp cutting edges, in grade T0315, a PVD coated fine grained WC-Co carbide within ISO range N05-N30, for fine to heavy machining of non-ferrous metals.
Product Specifications
| EDP Number | 6756146 |
| Max Depth of Cut (mm) | 2.1 mm |
| Max Depth of cut (Inch) | 0.083" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.8 mm |
| Fixing Hole Diameter (Inch) | 0.11" |
| Cutting Edge Length (mm) | 7.8 mm |
| Cutting Edge Length (Inch) | 0.307" |
| Inscribed Circle Diameter (mm) | 6.35 mm |
| Inscribed Circle Diameter (Inch) | 0.25" |
| Insert Thickness (mm) | 2.38 mm |
| Insert Thickness (Inch) | 0.094" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating Process | PVD |
| Coating | T0315 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.4 mm |
| Min Depth of Cut (Inch) | 0.016" |
| Chipbreaker Manufacturer's Designation | AL |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
5/16"
Length (Decimal Inch):
0.3070"
Length (mm):
7.8mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.4mm
