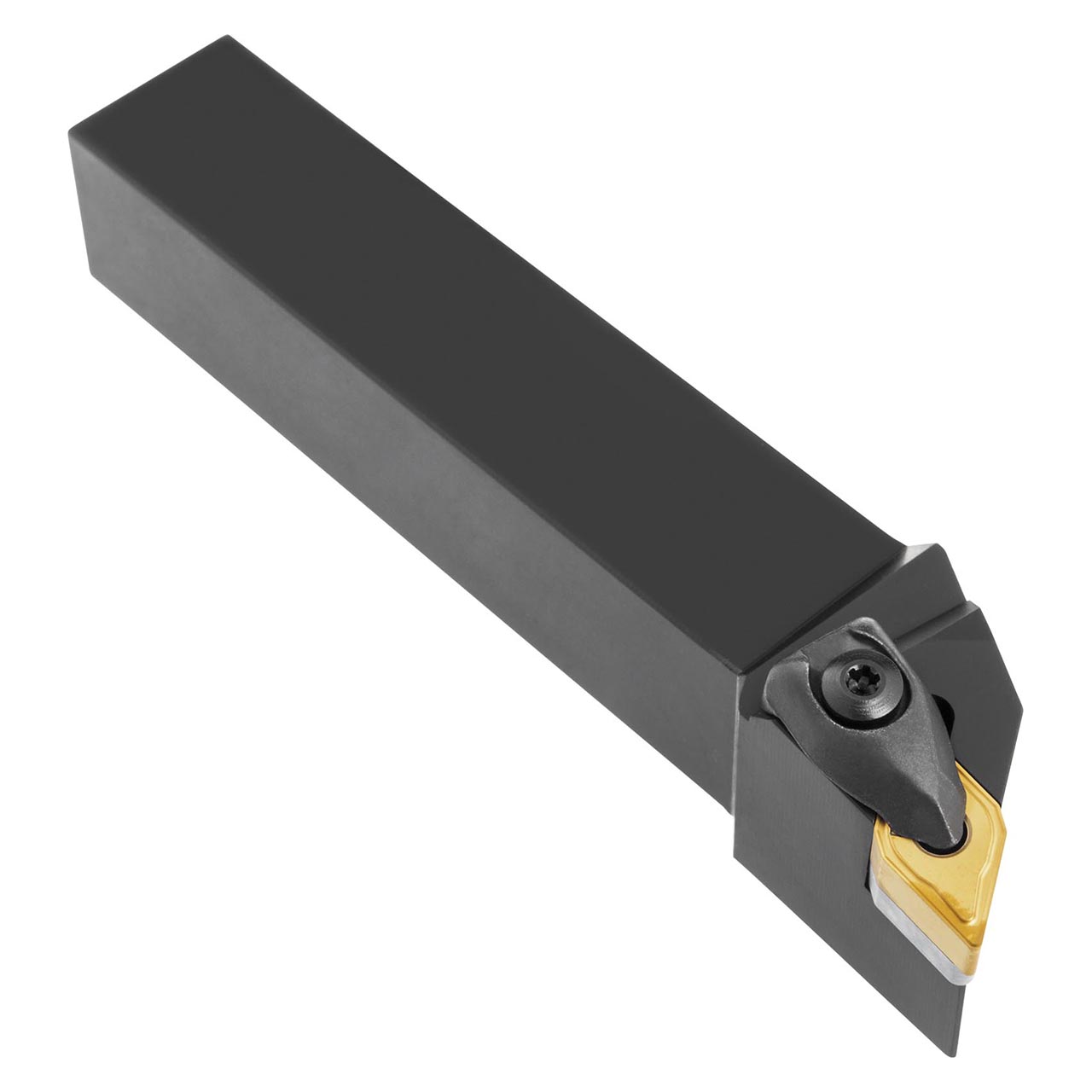

Double clamp turning tool for holding a 55 Degree rhombus negative insert with an inscribed circle diameter of 12.7 mm, 6.35 mm thick (ISO designation DN.. 1506.. ), left hand 93 Degree side cutting with off-set shank, 32 mm tool height x 25 mm width x 170 mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6757939 |
| Functional Height (mm) | 32 mm |
| Functional Width (mm) | |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -7 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 32 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 170 mm |
| Head Length (mm) | 39.4 mm |
| Clamping Type Code | System D |
| Hand (Cutting Direction) | Left |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
