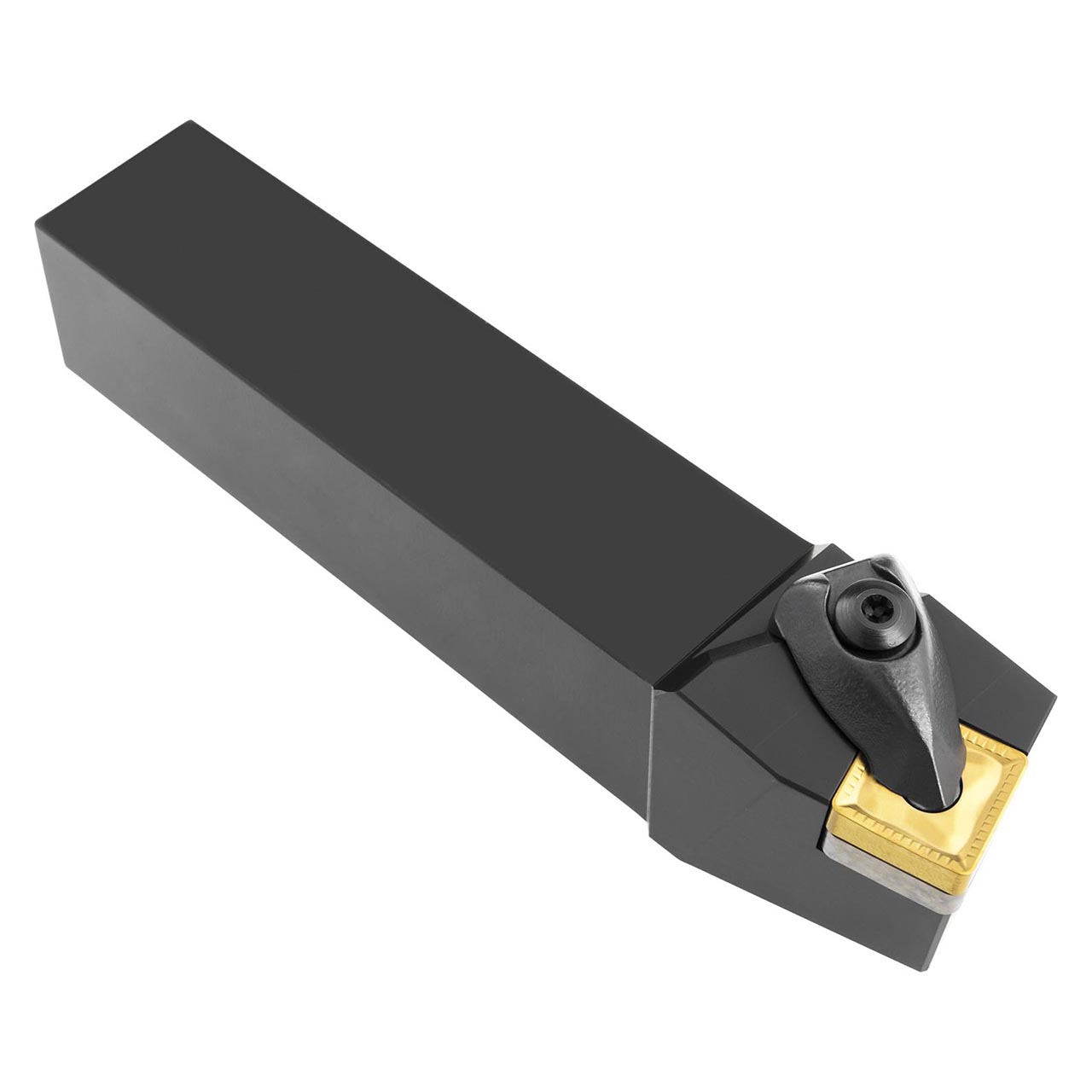

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 15.875 mm, 6.35 mm thick (ISO designation SN.. 1506.. ), left hand 75 Degree side cutting with straight shank, 25 mm tool height x 25 mm width x 150 mm long for taper turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 7028430 |
| Functional Height (mm) | 25 mm |
| Functional Width (mm) | |
| Head Bottom Offset Width (mm) | 2 mm |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 150 mm |
| Head Length (mm) | 41.6 mm |
| Clamping Type Code | System D |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
