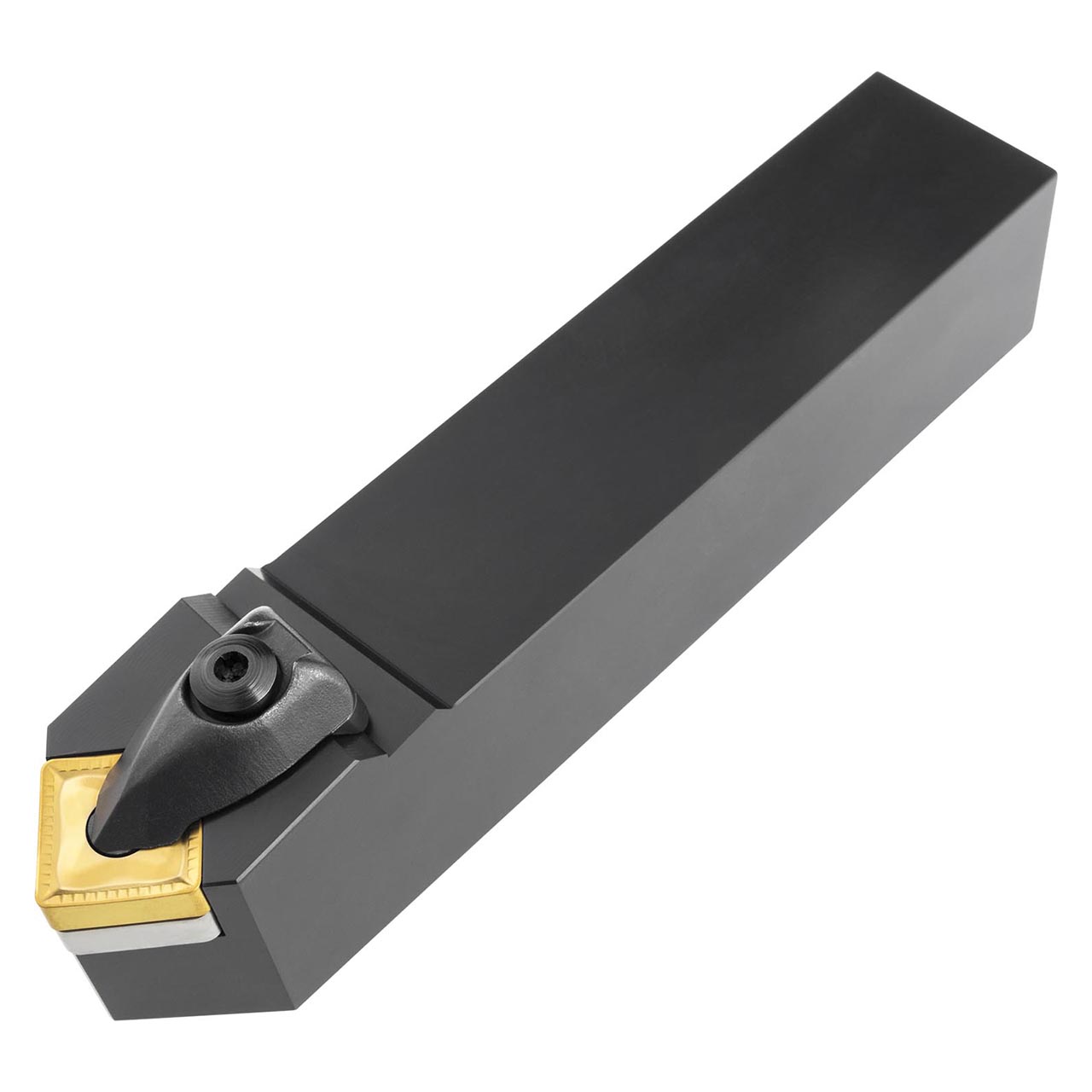

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 1'', 5/16'' thick (ANSI designation SN.. 85. ), neutral hand 45° side cutting with straight shank, 1.1/2'' tool height x 1.1/2'' width x 6'' long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6788594 |
| Functional Height (Inch) | 1.5" |
| Functional Width (Inch) | 0.791" |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Functional Length (Inch) | 6" |
| Head Length (Inch) | 2.26" |
| Clamping Type Code | System D |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
1-1/2"
Shank Width (Decimal Inch):
1.5000"
Shank Width (mm):
38.1mm
